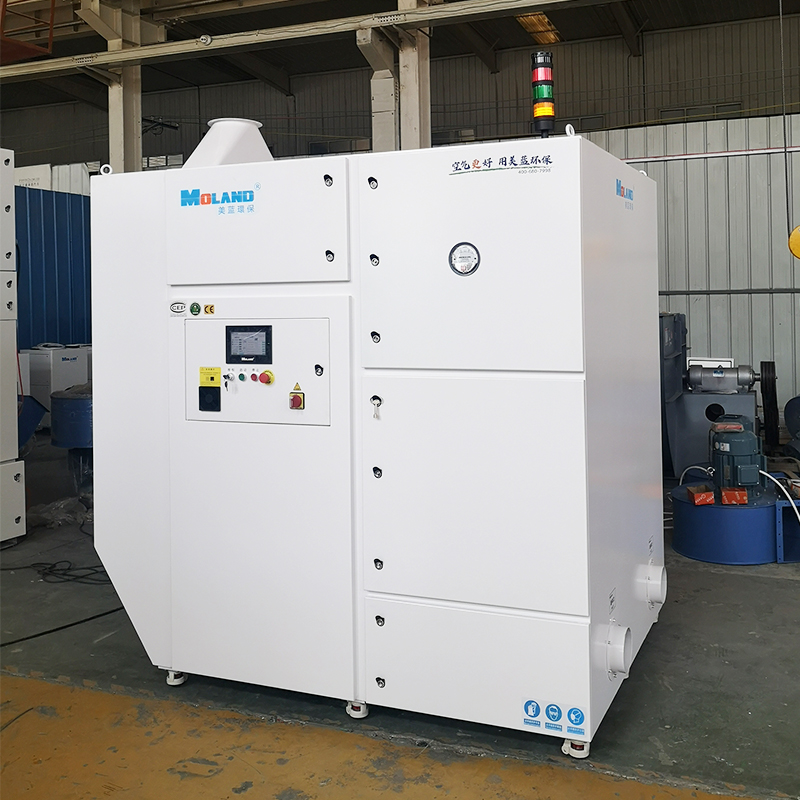

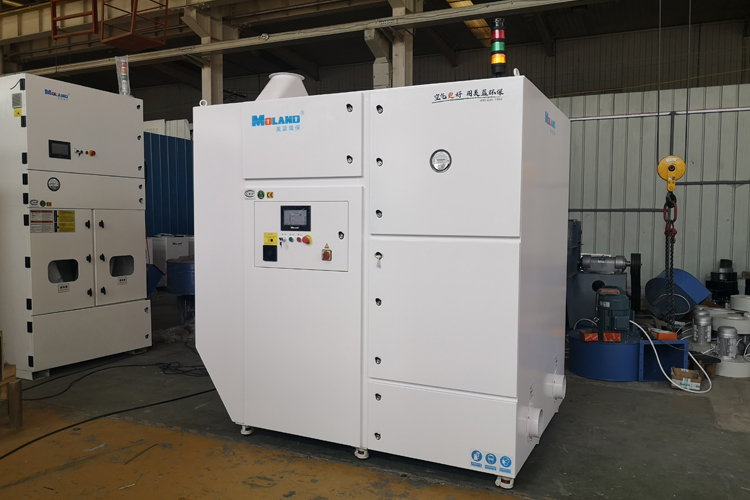

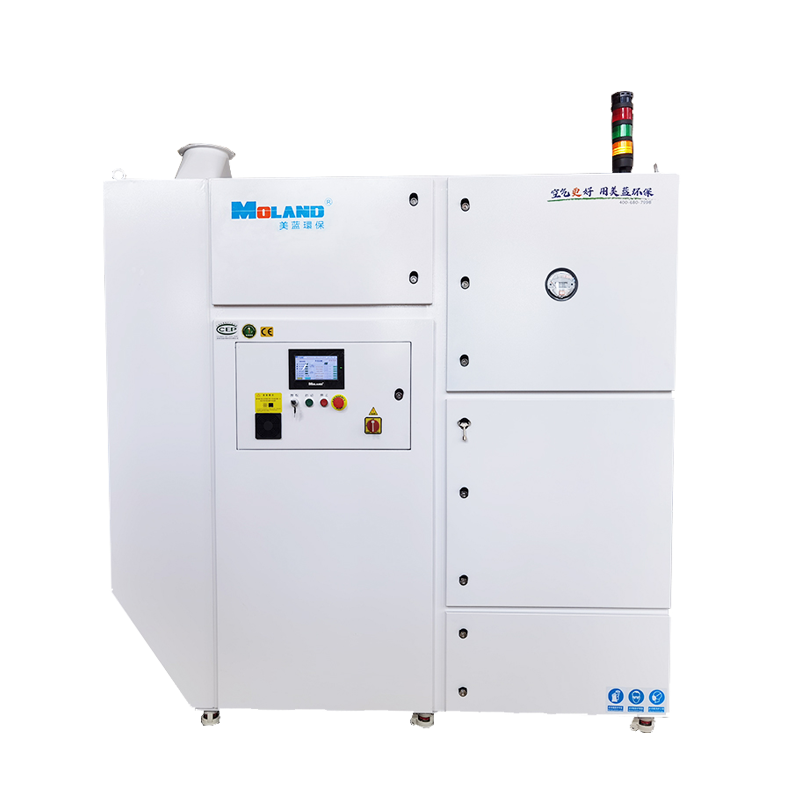

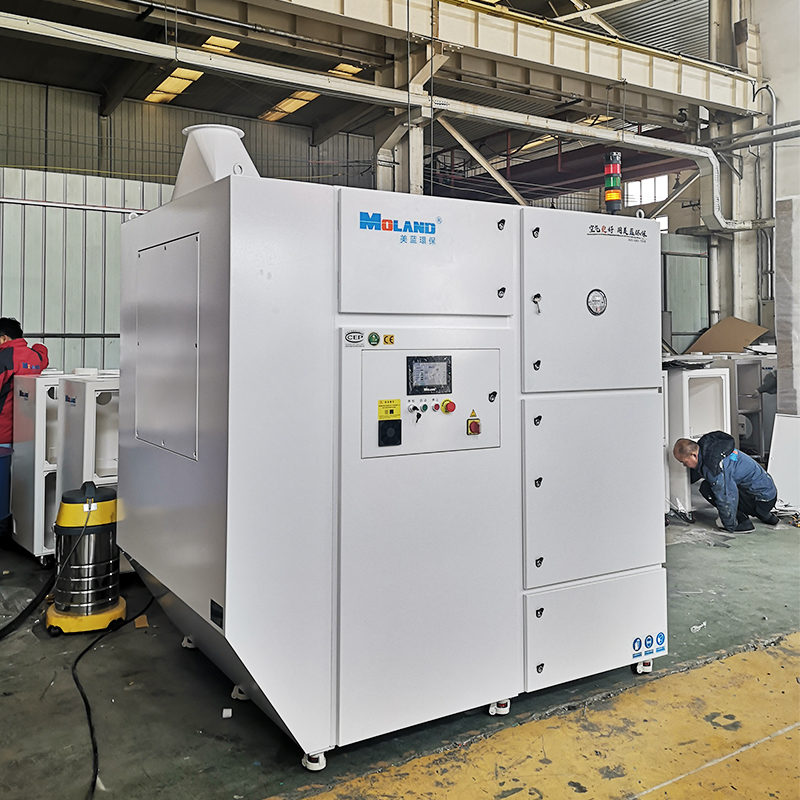

MLWFHT-600L

Mobile Fume Extractor

High efficiency deodorizing purifier is applicable for laser cutting, soldering, laser marking, engraving, cutting and other smoke and odor.

  • Motor Power:5.5kw
  • Air Volume:6000m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Filter: Multistage filtering
  • Ideal for deodorizing and smoke purifying.
Get In Touch
  • Free combination on demand to meet various working conditions

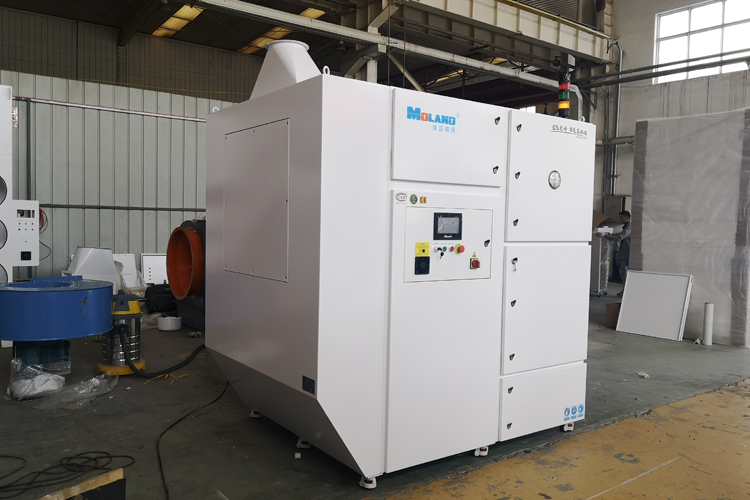

High Efficiency Dust and Odor Removal Purifier

This high efficiency dust and odor removal purifier can be used for multi-function laser cutting machine, circuuit board soldering, laser cutting acrylic/PVC/rubber leather and other materials that generate odor.

Tech Specs

Product model MLWFHT-600L
Power 5.5kw
Working Voltage 380v/50Hz 3P
Air volume 6000m³/h
Filter accuracy 0.3μm
Filter material Multi-stage filter
Cleaning Mode Manual
Filter area 16m²
Noise 75dBA
Dimensions 2100*1470*2100mm
Weight 1000±20Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

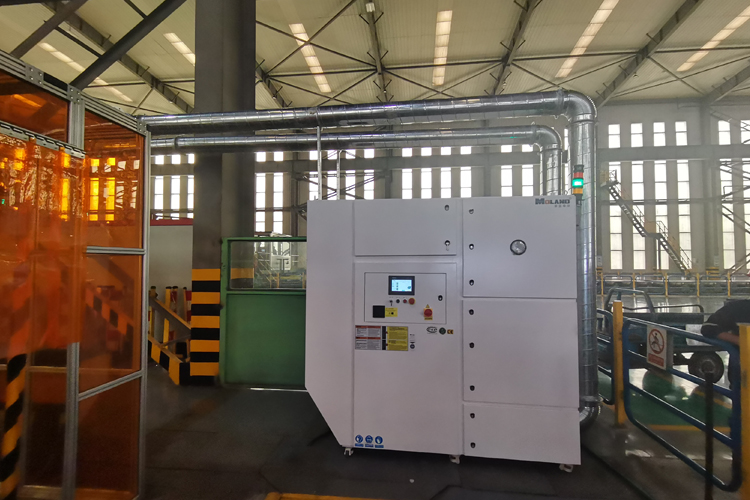

Industrial Odor and Smoke Purification

This industrial high efficiency smoke and odor purifier is ideal for the treatment of smoke and odor generated by laser cutting, soldering, laser marking, engraving, cutting, etc.

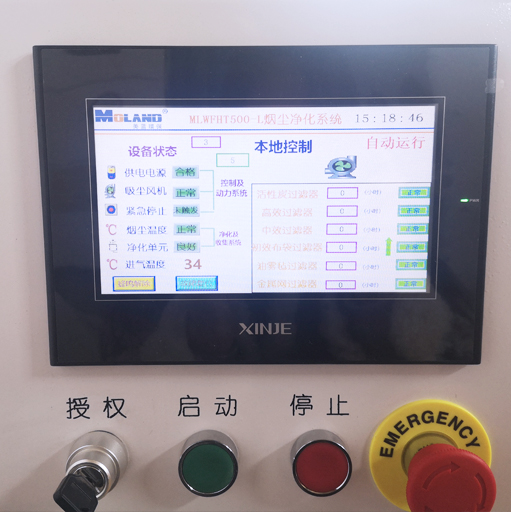

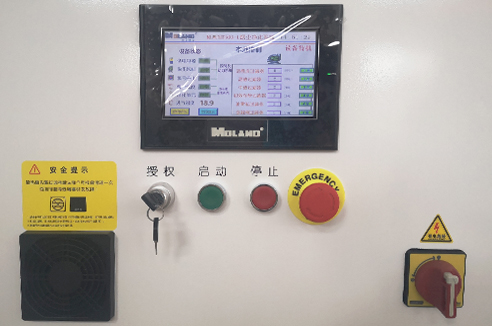

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Important parameters are protected to prevent misoperation.
    3. Optional Siemens system.

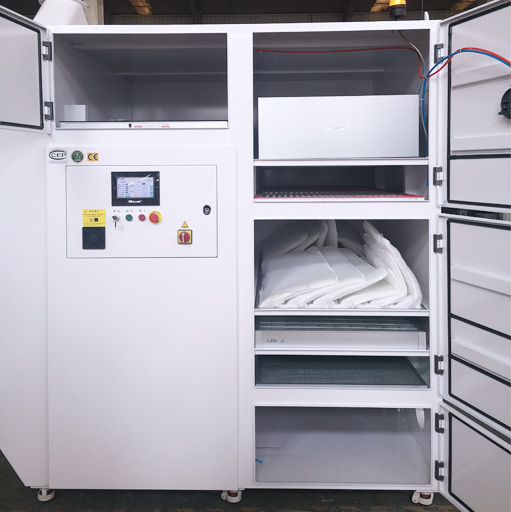

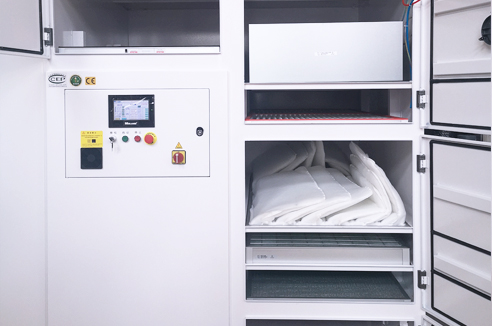

  • Multi-stage filtration system


    1. Multi-stage filtration system effectively filters oil smoke, odor, smoke, dust, etc.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

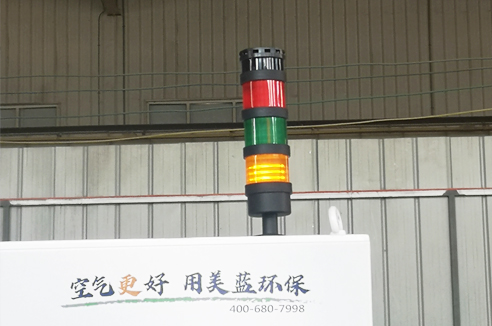

  • Fault Alarm


    1. Power status monitoring: Alarm when fault phase, overvoltage and undervoltage.
    2. Operating temperature monitoring: Alarm when system temperature is too high to prevent fire.
    3. Cartridge filter status monitoring: Alarm when the differential pressure is high.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
