MLWF500H-4T/6T

Stationary Dust Collector

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.

  • Motor Power:4kw
  • Air Volume:4500-6000m³/h
  • Toray flame-retardant PTFE coated filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

Industrial Dust Collector

MLWF series centralized dust removal systems are designed for many applications, guaranteeing the best possible economic solutions in removing industrial contaminants. Dust collectors are an important consideration for your facility, and worker safety. Choosing the right model of duct collector will have an impact on air quality in your workplace. Cartridge dust collectors are often used in facilities where very sub-micron particles must be filtered, or where continuous filtration is a requirement.

Tech Specs

Product model MLWF500H-4T MLWF500H-6T
Power 4kw 4kw
Working Voltage 380V/50Hz 3P 380V/50Hz 3P
Air volume 4500-6000m³/h 4500-6000m³/h
Filter accuracy 0.3μm 0.3μm
Filter material Flame-retardant Nano filter
Cleaning Mode Automatic pulse jet cleaning
Filter area 92m² 138m²
Noise 75±3dBA 75±3dBA
Dimensions 1240*1375*2400mm 1240*1375*2870mm
Weight 760Kg 830Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Cartridge Dust Collector

Dust collectors are devices used to minimize shop debris and keep working spaces clean. Moland dust collection systems are commonly used in metalworking shops to improve air quality by capturing dust and other airborne particles.

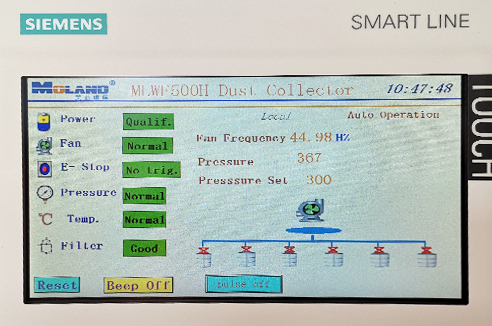

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Important parameters are protected to prevent misoperation.
    3. Optional Siemens system.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.
    2. Service life is about 3000~4000 hours.

  • Optional Explosion-proof Device


    1. Explosion-proof fans, explosion-proof solenoid valves, explosion-proof electric control boxes, anti-static filter elements, explosion vent.
    2. Other explosion-proof parts as per your requirements, such as Flameless explosion vent， one-way explosion-proof valve, etc.

  • Dust Collection Drawer


    1. Large-capacity dust collection drawer at the bottom, and the pressure rod self-locking design helps you easily dispose of the collected dust.
    2. There is an anti-back-suction device above the dust collection drawer to prevent the dust in the drawer from being sucked back into the filter cartridge chamber under the action of pulse airflow.


  • Fault Alarm


    1. Power status monitoring: Alarm when fault phase, overvoltage and undervoltage.
    2. Air pressure status monitoring: Alarm if the compressed air pressure is too low to prevent incomplete dust cleaning.
    3. Operating temperature monitoring: Alarm when system temperature is too high to prevent fire.
    4. Cartridge filter status monitoring: Alarm when the differential pressure is high.

Applications

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
