MLWF50

Mobile Fume Extractor

This product is designed to capture and clean smoke and dust from light-duty welding, soldering, and grinding applications. When operating, air is drawn in to the nozzle, passes through the 40mm diameter hose, then through the air cleaner’s filtration system, and is finally exhausted through the side discharge.

  • Motor Power: 300w
  • Air Volume: 300m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Suction Hose: Ф58mm*2m with flexible nozzle
  • Built in spark trap for fire safety.
  • Magnetic support base for hands free operation.
Get In Touch
  • Free combination on demand to meet various working conditions

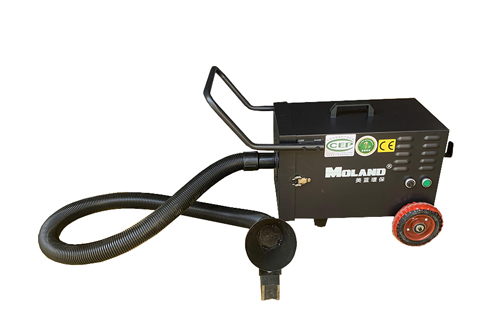

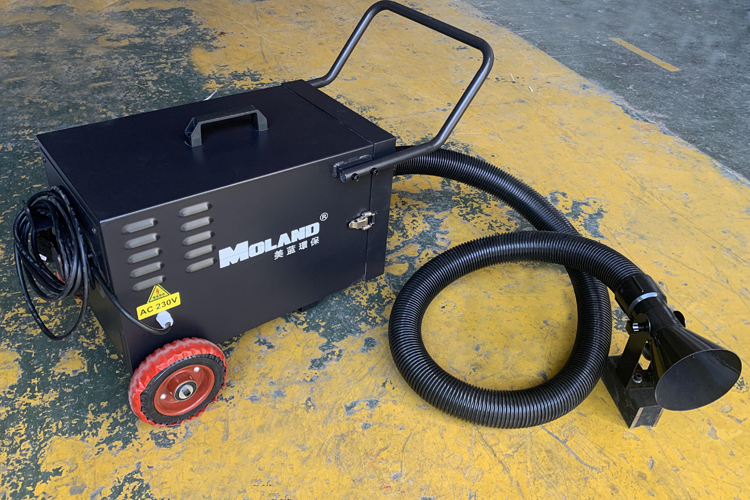

Portable Welding Smoke Extractor

This MLWF50 portable fume extractor is only 20kg and is a perfect solution and companion for fume extraction mig welding torches, onsite welding applications represents new standards in portable welding fume extractors with the capacity to deal with fumes up to medium MIG, TIG, and MMA welding applications. Also ideal as a solder fume extractor due to the compact design of the extraction nozzle.

Tech Specs

Product model MLWF50
Power 300W
Working Voltage 220V 50Hz 1P
Air volume 300m³/h
Filter accuracy 0.3μm
Filter material Multi-stage filter plates
Suction hose Ф58mm*2m with flexible nozzle
Magnet base for hands free operation
Noise 68±3dBA
Dimensions 500*300*300mm
Weight 20Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

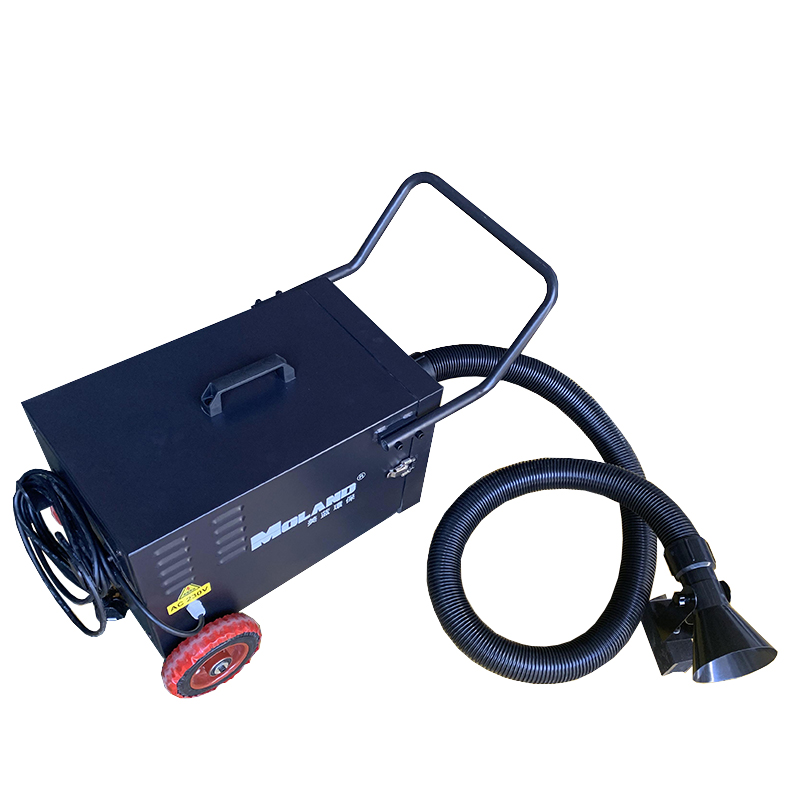

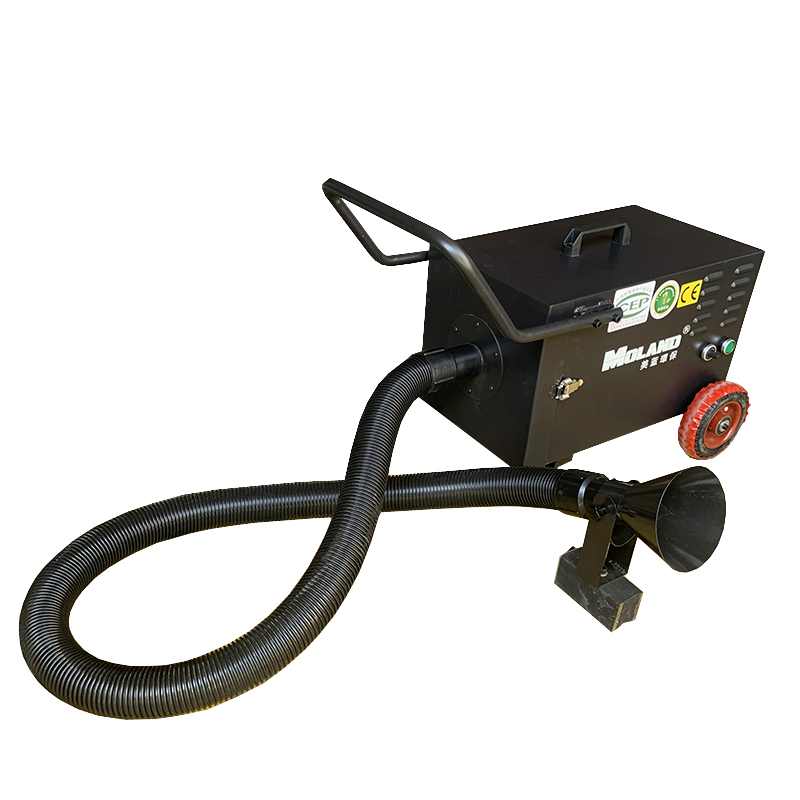

Portable Fume Extractor

Portable welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect.

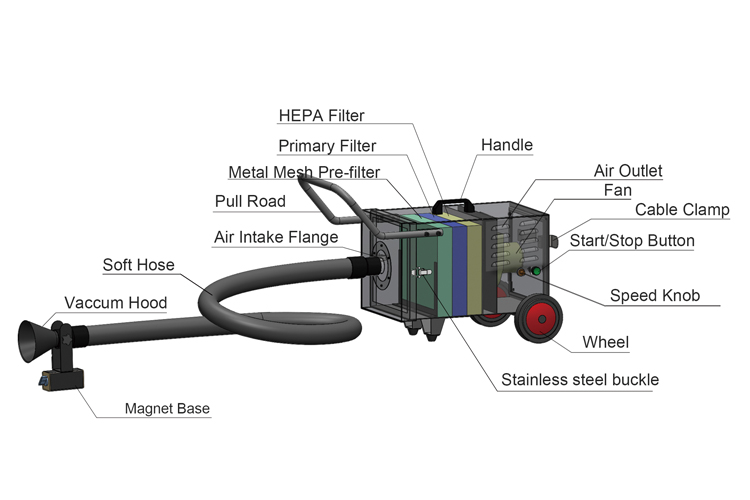

  • Multi-stage Filtration


    1. Multi-stage filtration system, achieving a filtration precision of 0.3 microns, with an air purification efficiency of up to 99.9%.

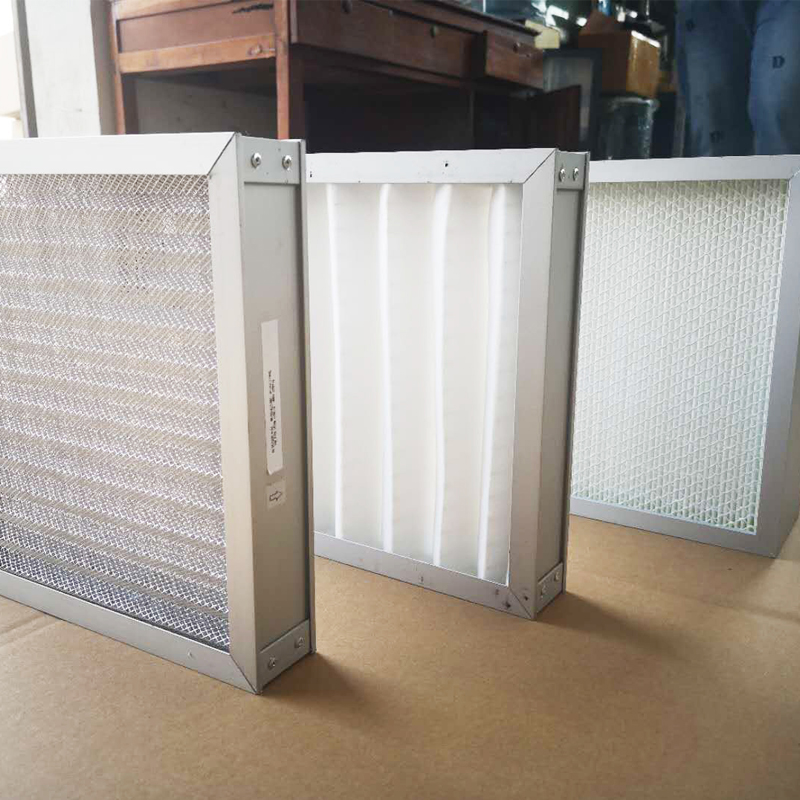

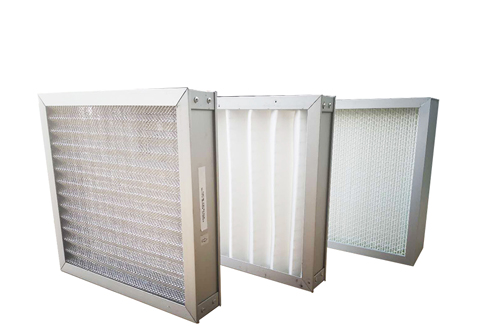

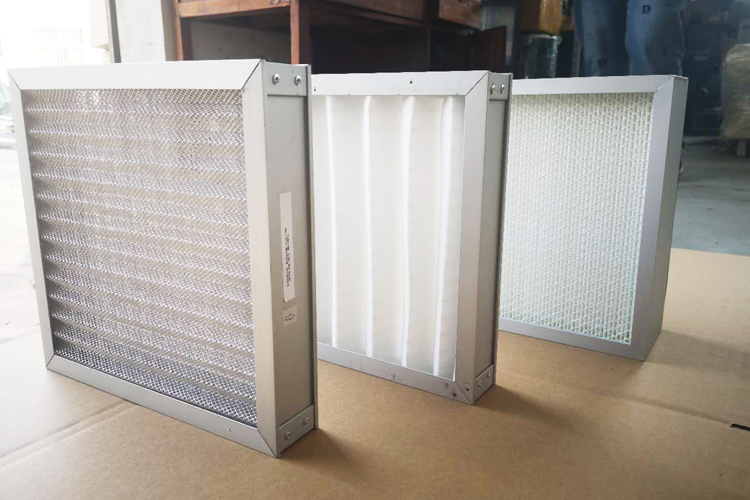

    2. Three-layer Filtration: Pre-filter, Primary filter, High efficiency filter.

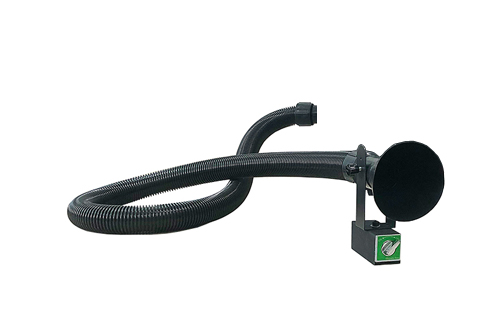

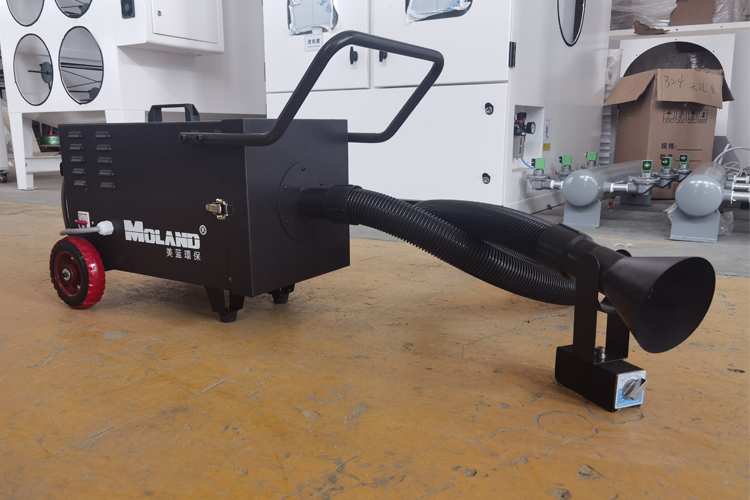

  • Flexible Extraction Hose with Magnetic Base

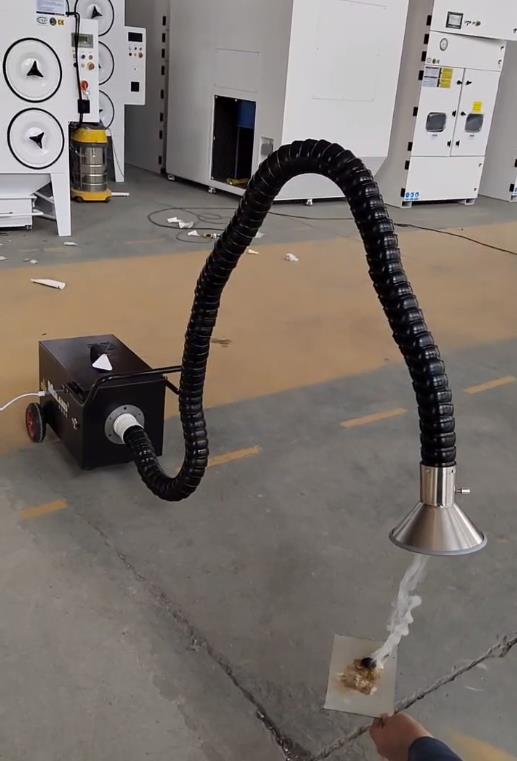

    1. The flexible extraction hose with nozzle can capture fumes and dust directly at the source.
    2. The magnetic base allows the nozzle to stay in place and easily be moved between metal surfaces.
    3. 58mm diameter suction hose.

  • Light Weight and Space Saving


    1. The fume extraction size is only 500*300*300mm, perfect for confined spacesand small workshop.
    2. The fume extraction only weights about 20kg, convenient to move it between working stations.
    3. With convenient handle and pull rod, you can easily pull it to any working station.

Applications

Welding fume dedusting

Welding fume dedusting

Dust Purification System Of Small Straight Welding Machine

Welding fume dedusting

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Contact Us
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
