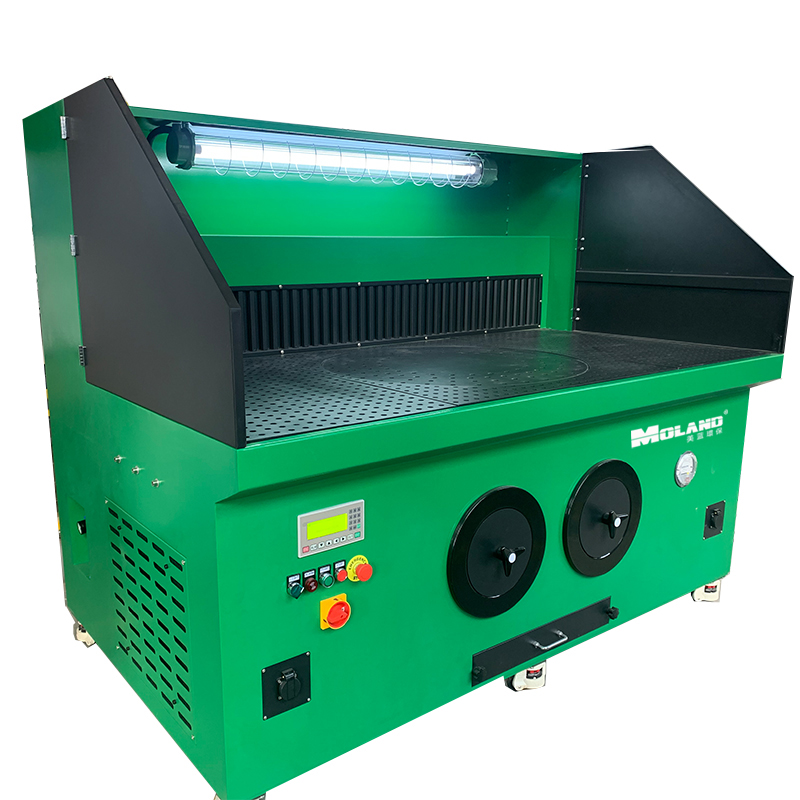

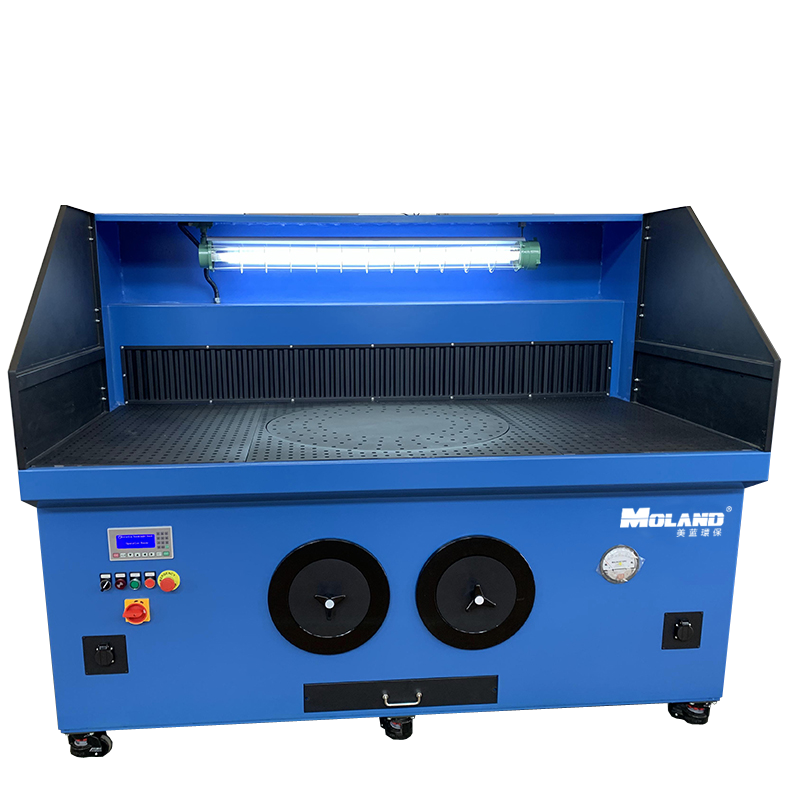

MLWF4400

Grinding Dust Collector

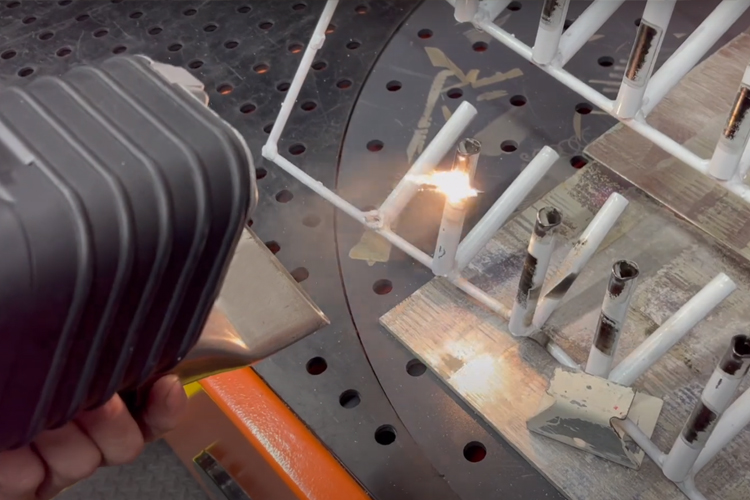

Downdraft Tables are dual purpose work bench and extraction units, designed for the collection and purification of smoke fume and dust at the source. Power extraction motor offering 3300CFM air volume for 20% backdraft extraction and 80% downdraft. Downdraft table is a great solution for welding, grinding, plasma cutting etc. for small to medium size parts.

  • Motor Power：2.2kw*2
  • Air Volume: 5600m³/h
  • Filter Material: Flame-retardant PTFE Coated polyester fiber
  • Filtration Accuracy: 0.3μm, 99.9%
  • Cleaning Mode: Automatic pulse jet cleaning
  • Downdraft and backdraft.
Get In Touch Brochure
  • Free combination on demand to meet various working conditions

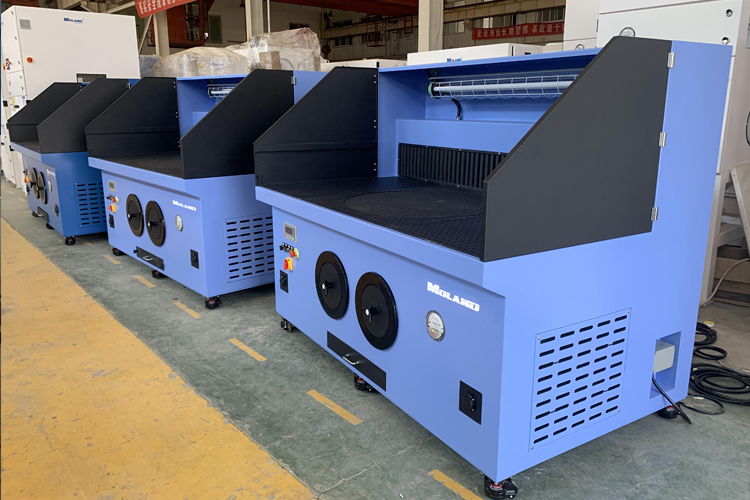

Dry Dust Downdraft Table

For many applications, a industrial dry dust collection downdraft table is the ideal source capture. The worker has free, open operation over the worktable surface and gravity works with the blower to pull contaminants into the bottom dust collection drawer, away from the worker's breathing zone. Downdraft benches are used for a broad spectrum of particulates, including composite dust, fiberglass dust, marble dust, plastic dust, other metals, and also welding and soldering smoke and fume.

Tech Specs

Product model MLWF4400
Power 2.2KW*2
Working Voltage 380v/50Hz 3P
Air volume 5600m³/h
Filter accuracy 0.3μm
Filter material Imported flame-retardant PTFE coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter area 20m²
Noise 75±3dBA
Dimensions 2000*1250*1600mm
Weight 500Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 Year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

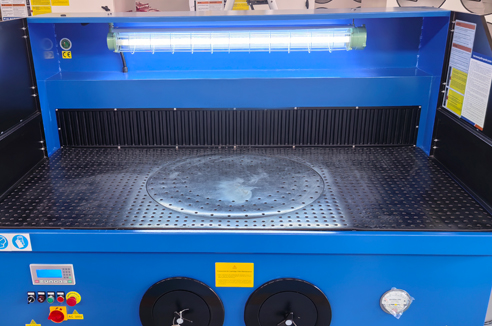

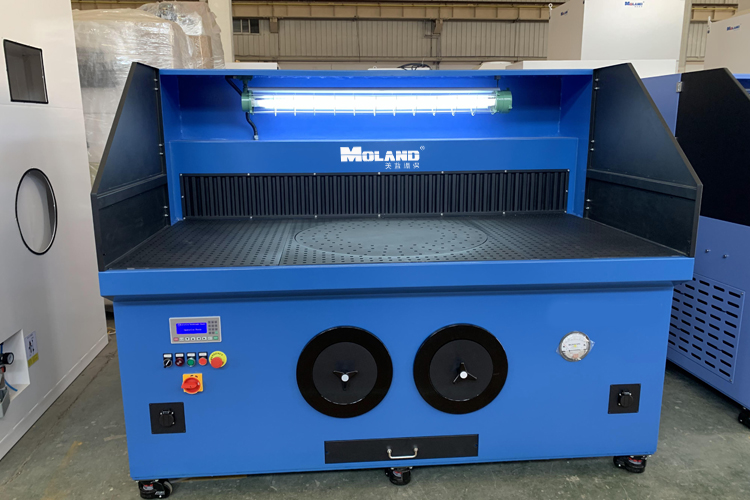

Downdraft Dust Collection Table

The downdraft workbench features powerful downward airflow effectively capturing dust and fume. Even air distribution provides effective dust control over the entire work surface.

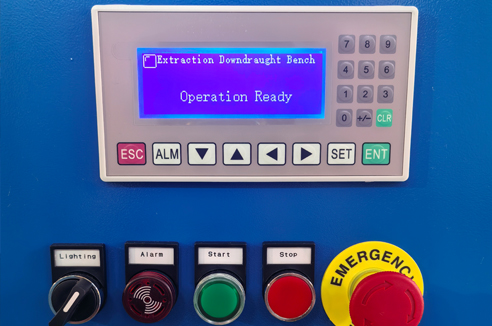

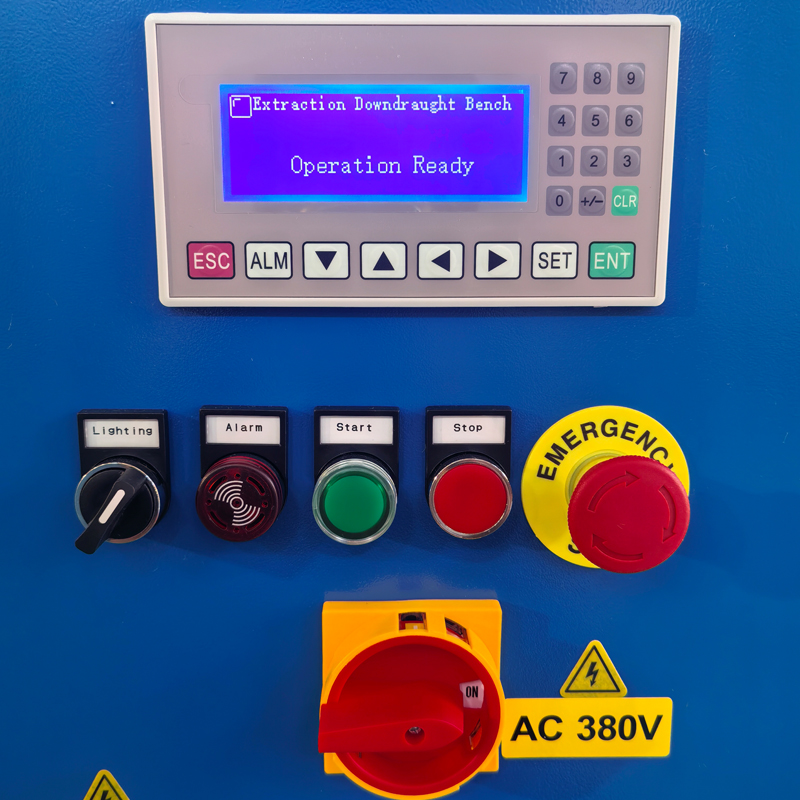

  • Intelligent Control System


    1. Intelligent control and backflush control system, efficient and safe.
    2. The text display screen intuitively shows the operating status of the device.
    3. Button operation, simple and convenient.
    4. Fault alarm function.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Coated Filter


    1. Imported Japanese Toray brand flame-retardant PTFE coated polyester fiber filter element, with filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily adhieve standard emission of purified air.
    2. Service life is about 3000~4000 hours.

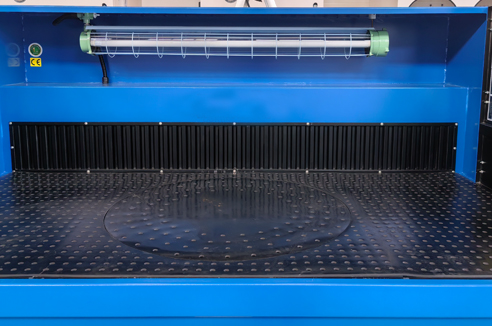

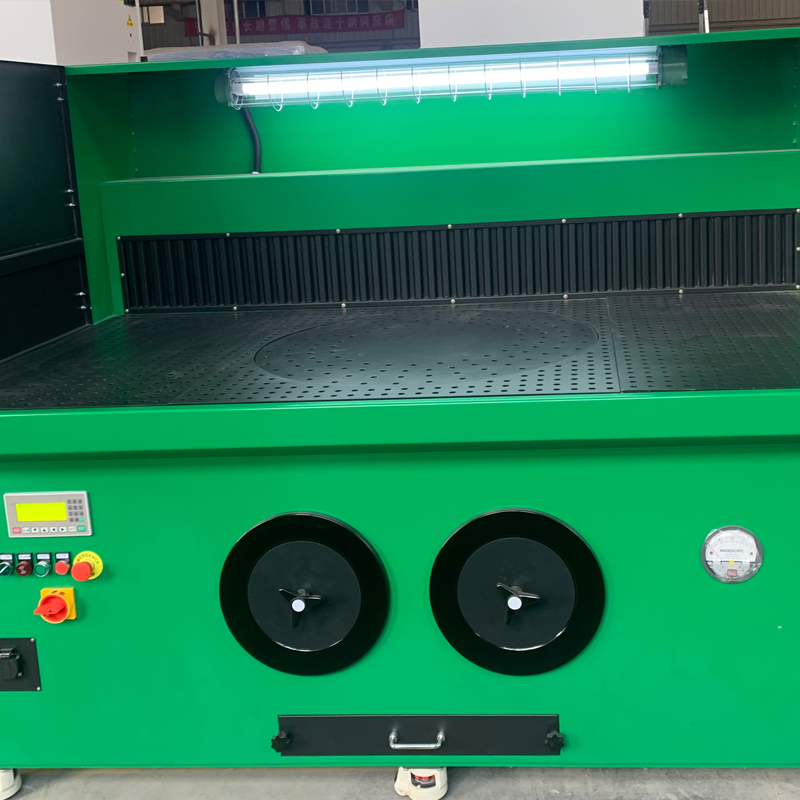

  • Table Top


    1. The work surface can be replaced to meet the grinding needs of various workpieces, such as carbon steel, stainless steel, brass, nylon, polyurethane, etc.
    2. Optional rotating table for more precise grinding angles.
    3. Downdraft + side draft function.

  • Explosion-proof lighting


    1. Aluminum alloy housing, explosion-proof glass lampshade, higher safety factor.
    2. Cold light source, no stroboscopic radiation, effectively reduce visual fatigue.
    3. The light can be switched on and off freely according to the working environment.

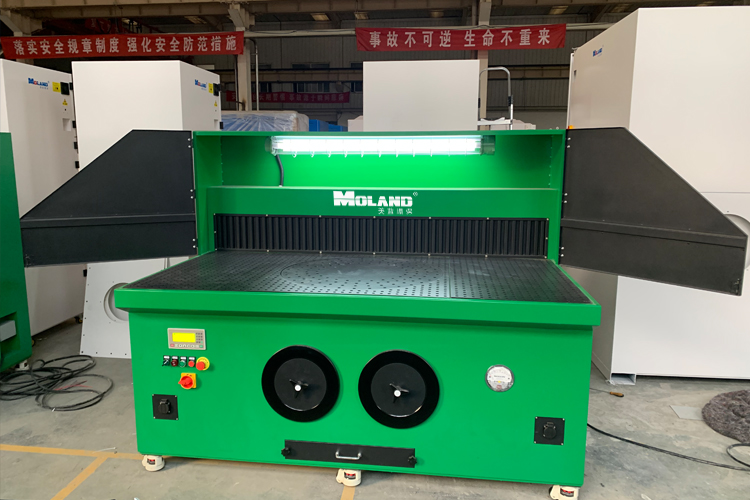

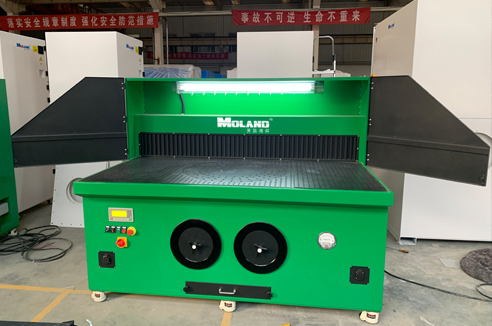

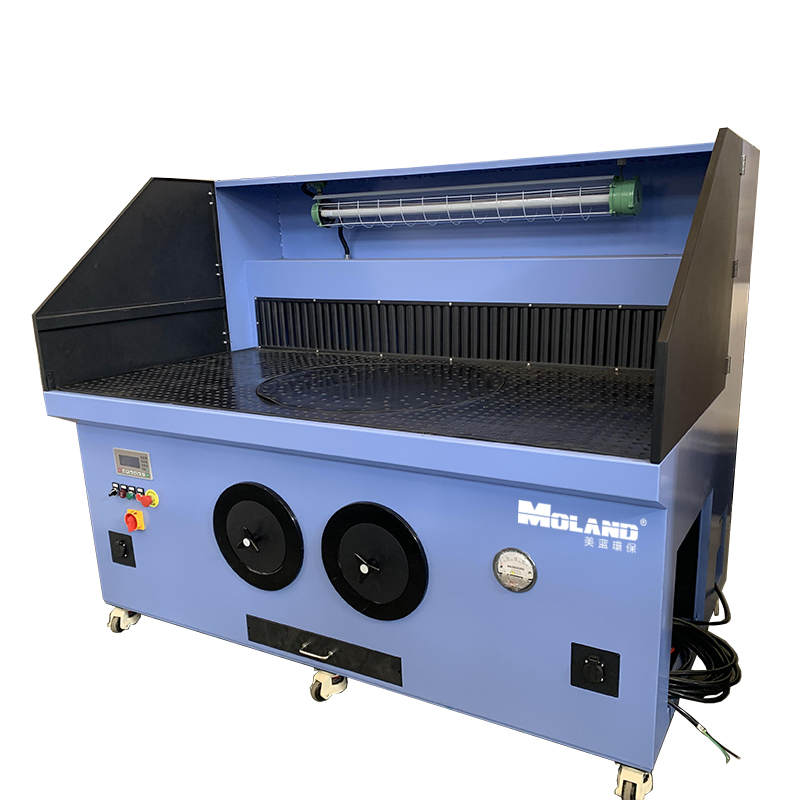

  • Foldable Side Wings


    1. The standard pin-hinged, foldable side wings of the dust and fume extraction table help to efficiently direct airflow and also provide operational flexibility to work on parts that vary in size.

Applications

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
