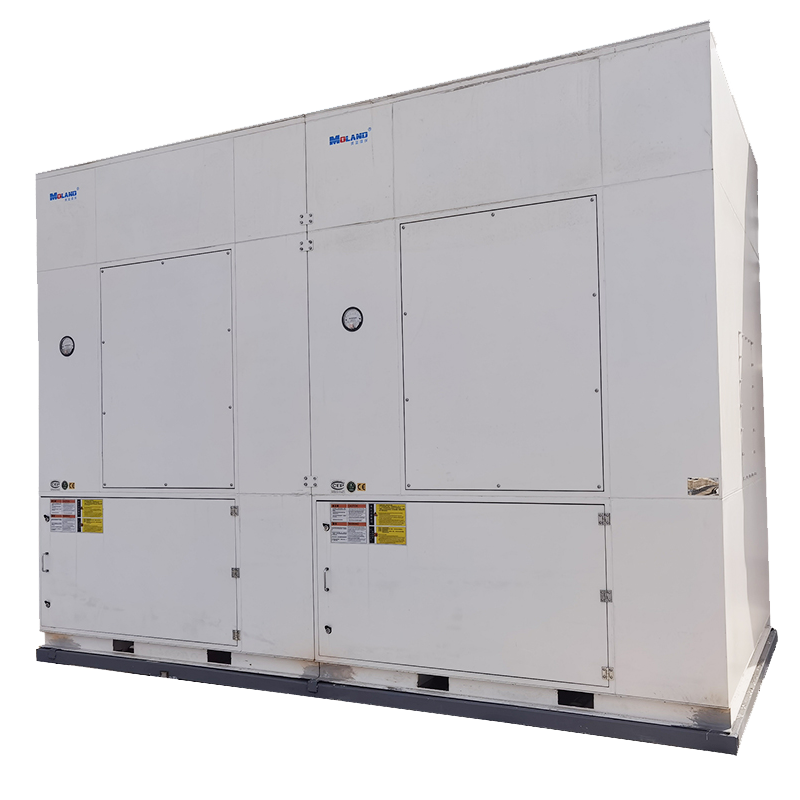

MLWF4000-96T

Stationary Dust Collector

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Moland independently developed intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.

  • Motor Power:45kw (frequency conversion)
  • Air Volume:45000~55000m³/h
  • Ahlstrom Nano filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.

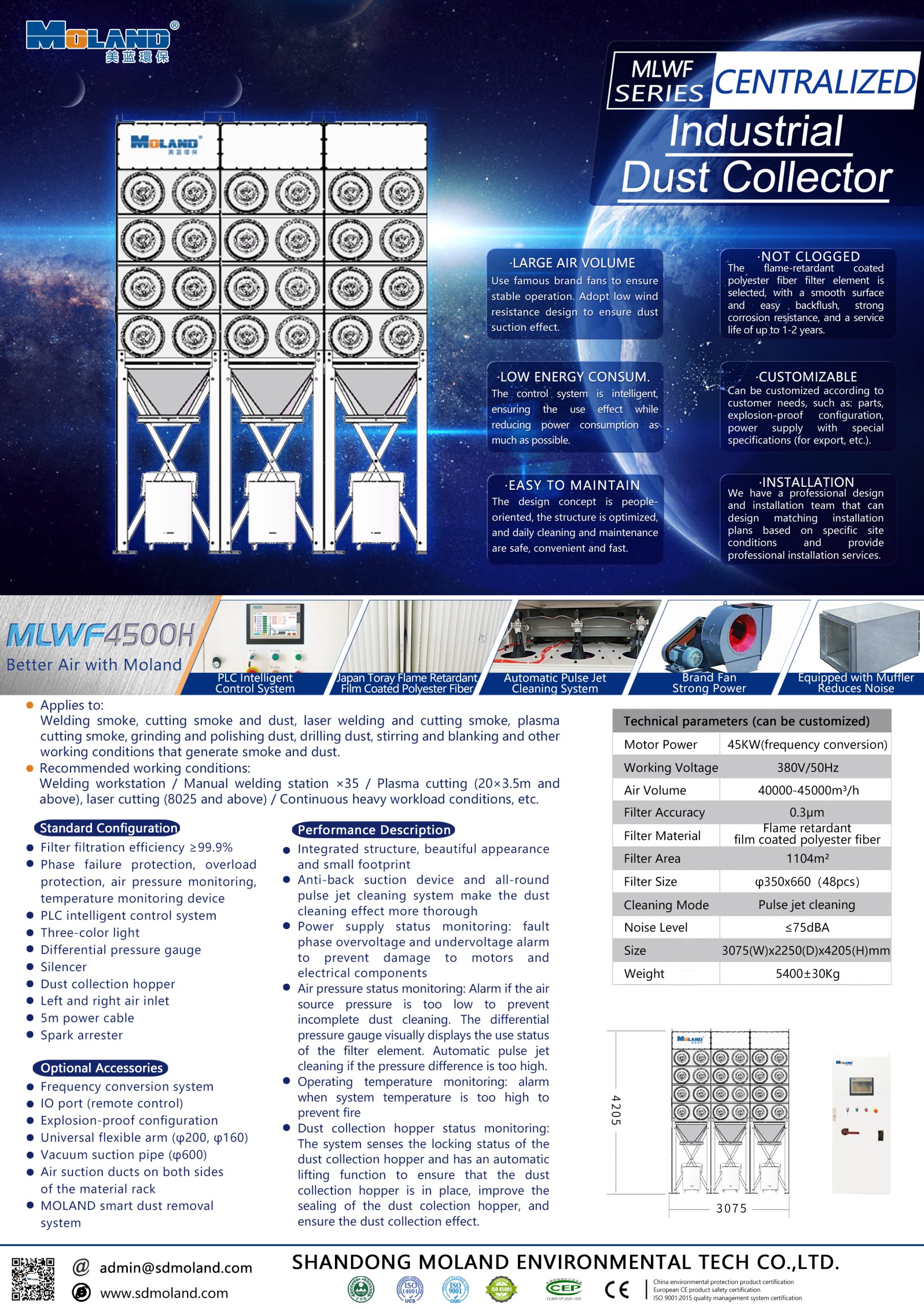

Get In Touch Brochure
  • Free combination on demand to meet various working conditions

Stationary Industrial Dust Collector

MLWF series centralized dust removal systems are designed for many applications, guaranteeing the best possible economic solutions in removing industrial contaminants. Dust collectors are an important consideration for your facility, and worker safety. Choosing the right model of duct collector will have an impact on air quality in your workplace. Cartridge dust collectors are often used in facilities where very sub-micron particles must be filtered, or where continuous filtration is a requirement.

Tech Specs

OEM
Product model MLWF4000-32T
Power 45kw(frequency conversion)
Working Voltage 380v/50Hz 3P
Air volume 45000-55000m³/h
Filter accuracy 0.3μm
Filter material Toray flame-retardant PTFE coated filter
Cleaning mode Automatic pulse jet cleaning
Filter area 640m²
Noise 75±3dBA
Dimensions 3950*1950*2400mm
Weight 3200±30Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

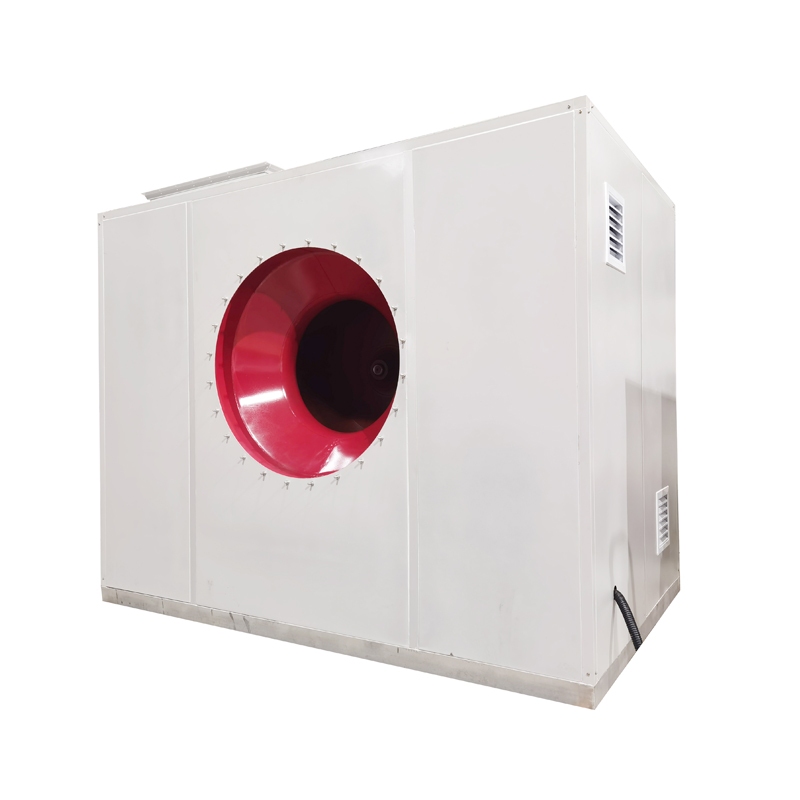

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

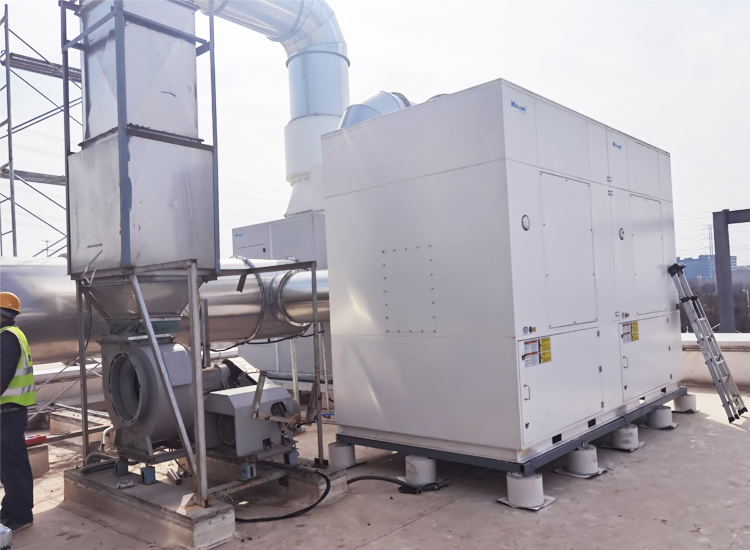

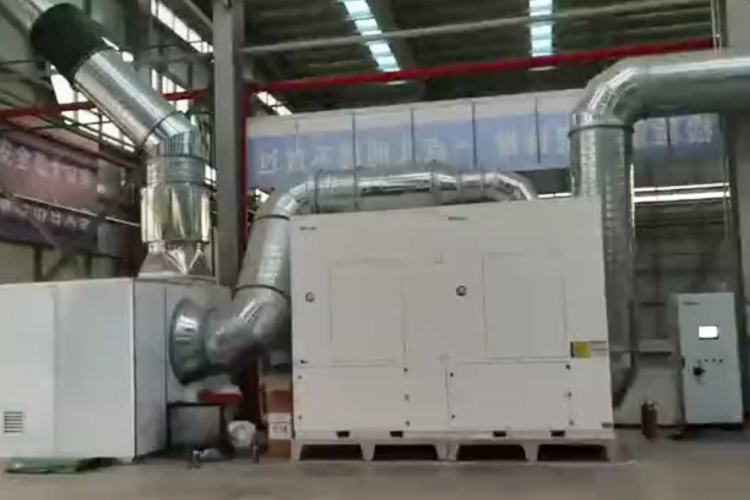

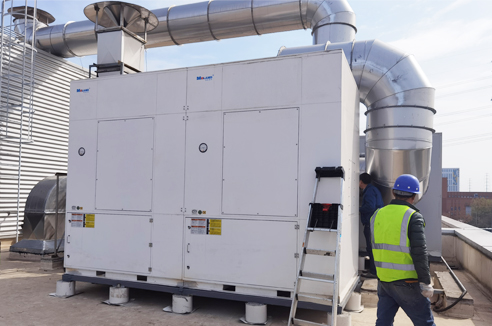

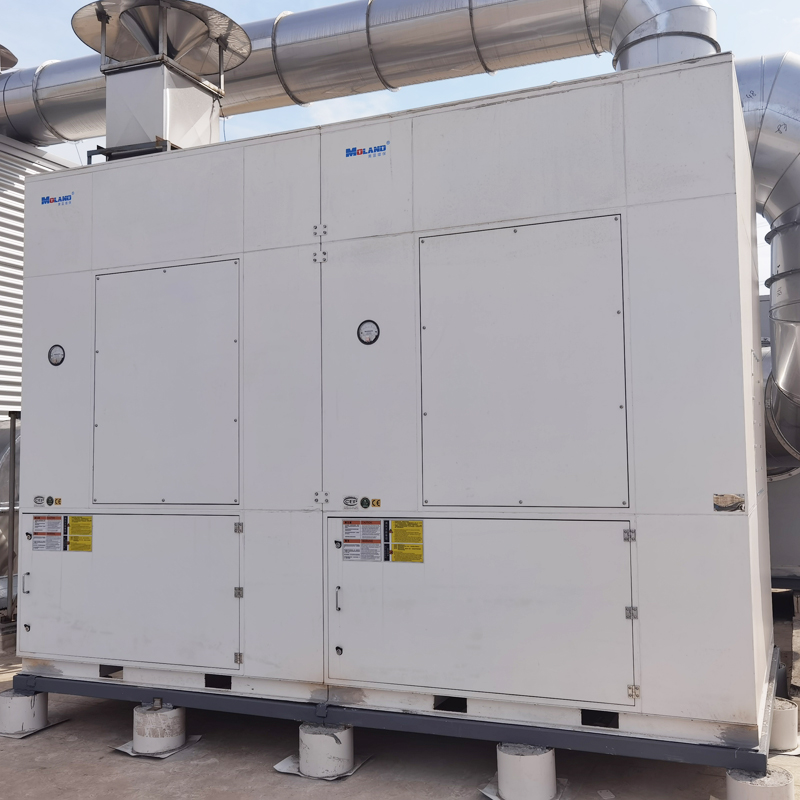

Industrial Dust Collector

Dust collectors are devices used to minimize shop debris and keep working spaces clean. Moland dust collectors are commonly used in metalworking shops to improve air quality by capturing dust and other airborne particles. The centralized dust collection system nomally contains a dust collector, air ducts and end suction methods, like suction hoods, extraction arms, independent working rooms, etc.

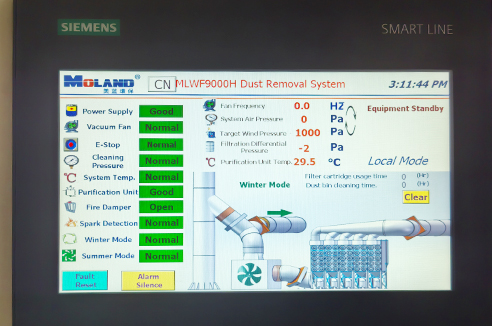

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Important parameters are protected to prevent misoperation.
    3. Optional Siemens system.

  • Lower Energy Costs


    1. The PLC monitors the air pressure in the pipeline according to the number of valves opened, and commands the inverter to adjust the frequency according to the target air pressure. The inverter controls the fan speed, and the real-time air pressure in the pipeline is fed back to the HMI, thereby reducing energy consumption while ensuring the dust removal effect.

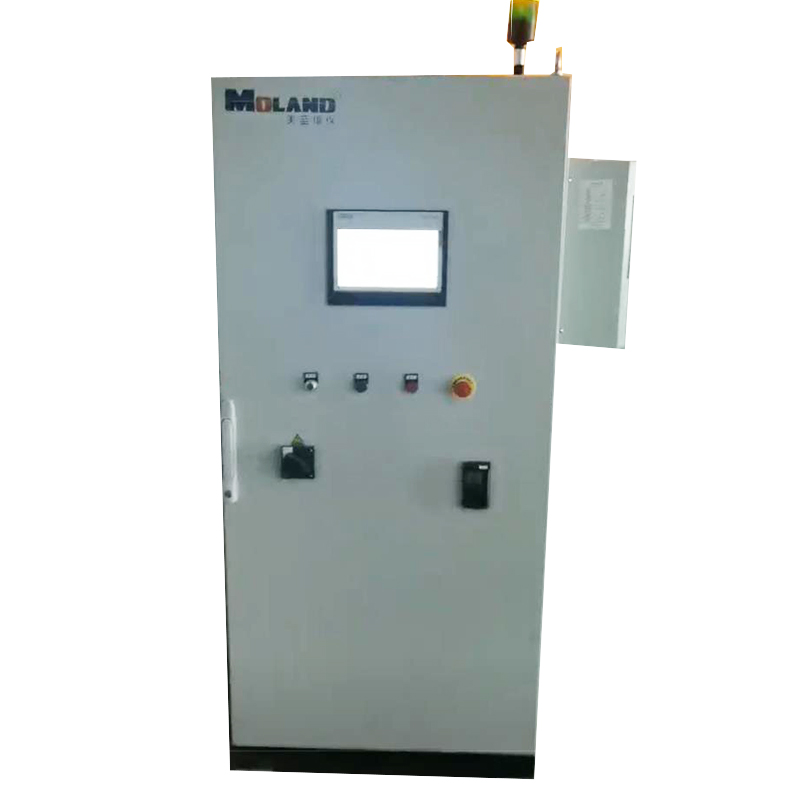

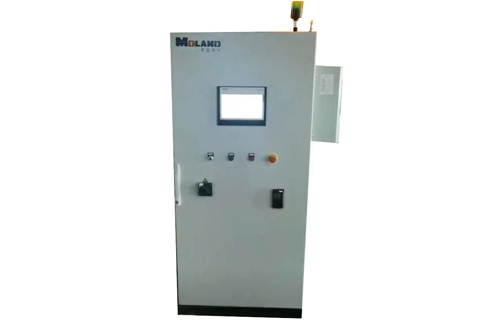

  • Electric Control Cabinet


    1. Independent electric control cabinet can be installed at any location according to the site conditions, which is convenient for users to operate and observe the equipment operation status at any time.
    2. The electric control cabinet uses high-quality housing and brand electrical components to ensure reliability and safety.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Coated Filter


    1. Imported Japanese Toray brand flame-retardant PTFE coated polyester fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.
    2. The service life is 3000~4000 hours.

  • Vertical Cartridge Structure


    1. The vertical arrangement of the cartridges makes for a more efficient cleaning of the filters when large particles are filtered.
    2. Drawer-type dust box makes dumping dust convenient and quick.
    3. Operation buttons + touchable screen for convenient using.

Applications

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
