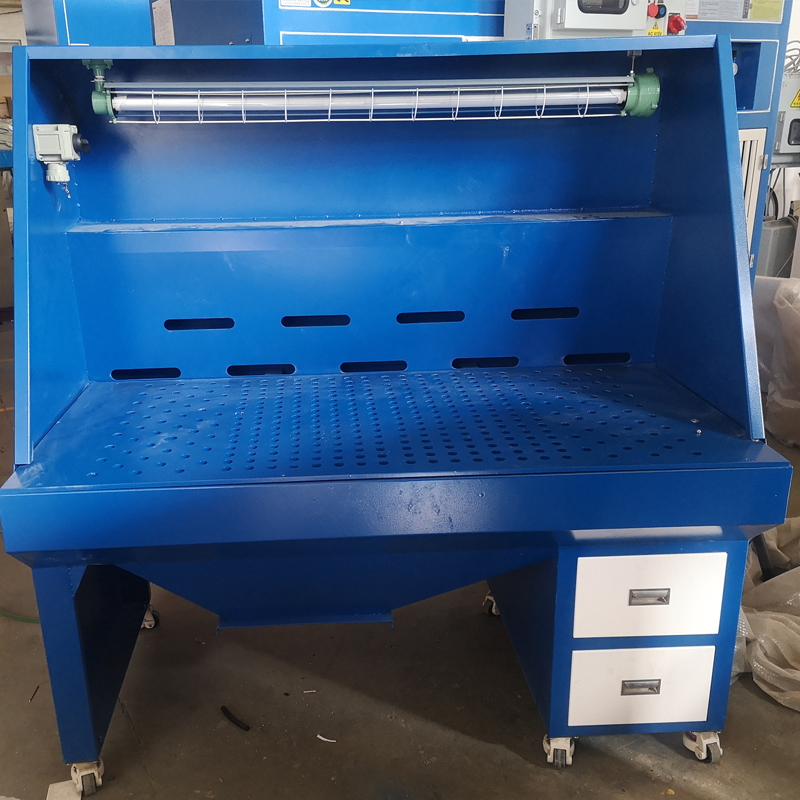

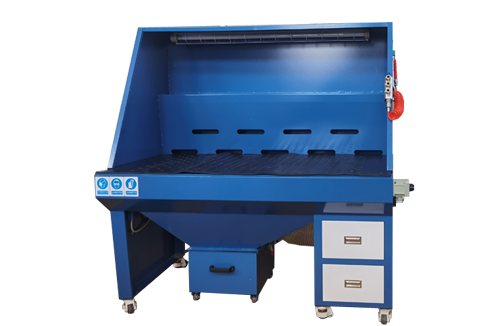

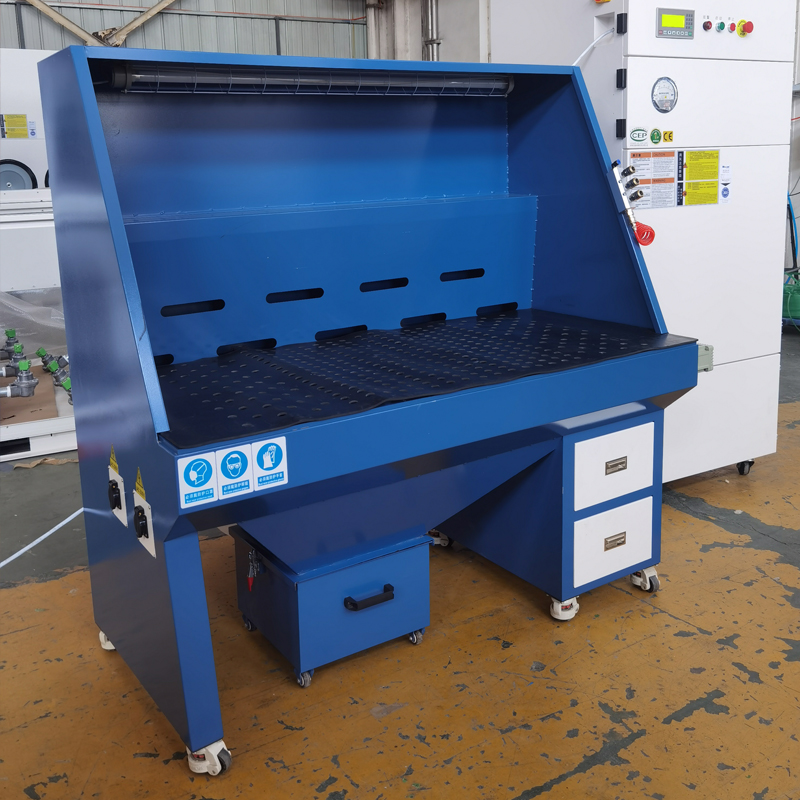

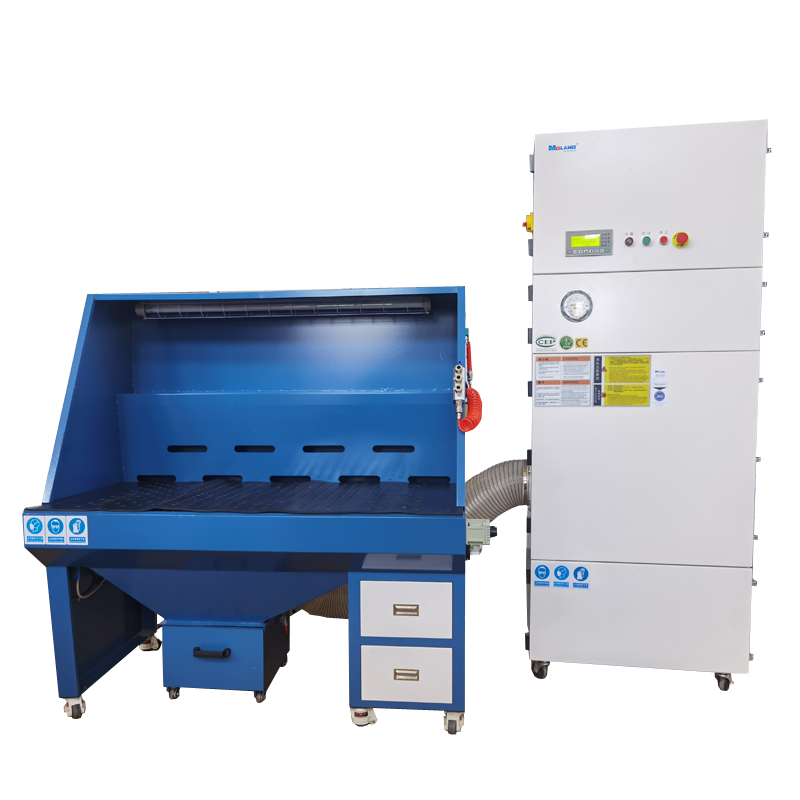

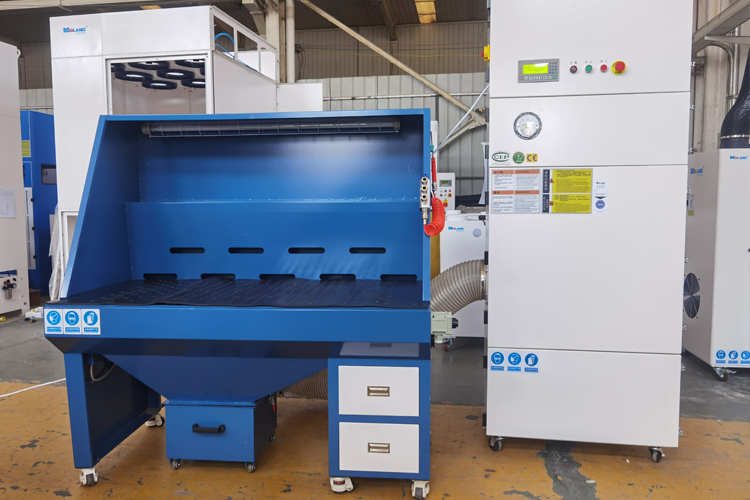

Downdraft Tables are dual purpose work bench and extraction units. Designed with downdraft and backdraft extraction holes, it's suitable for the collection and purification of smoke fume and dust at the source. Downdraft table is a great solution for welding, grinding, plasma cutting etc. for small to medium size parts.
For many applications, a industrial dry dust collection downdraft table is the ideal source capture. The worker has free, open operation over the worktable surface and gravity works with the blower to pull contaminants into the bottom dust collection drawer, away from the worker's breathing zone. Downdraft benches are used for a broad spectrum of particulates, including composite dust, fiberglass dust, marble dust, plastic dust, other metals, and also welding and soldering smoke and fume.
| Product model | MLWF350-DM |
| Power | 3KW |
| Working Voltage | 380v/50Hz 3P |
| Air volume | 3000~3500m³/h |
| Filter accuracy | 0.3μm |
| Filter material | Imported flame-retardant PTFE coated polyester fiber |
| Cleaning Mode | Automatic pulse jet cleaning |
| Filter area | 22m² |
| Noise | 75±3dBA |
| Dimensions | 840*800*2150mm |
| Weight | 300Kg |
| Downdraft Table Dimensions | 1500*820*1600mm |
| OEM | Acceptable |
| Certificate | CE, ISO9001, ISO14001, ISO45001 |
| Warranty | 1 year |

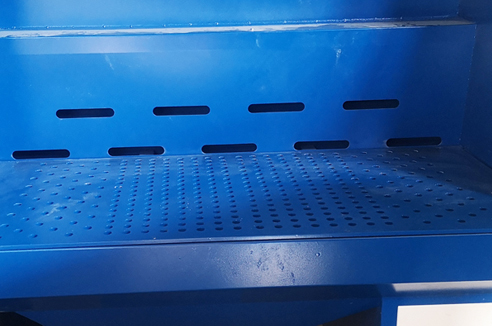

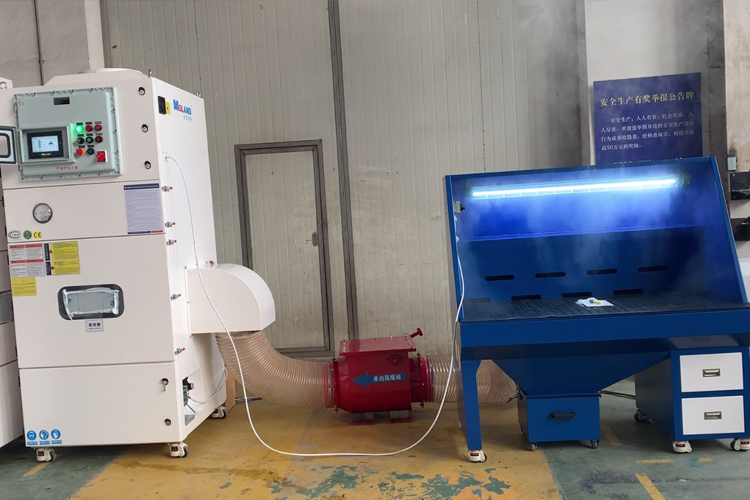

The downdraft workbench features powerful downward airflow effectively capturing dust and fume. Even air distribution provides effective dust control over the entire work surface.
