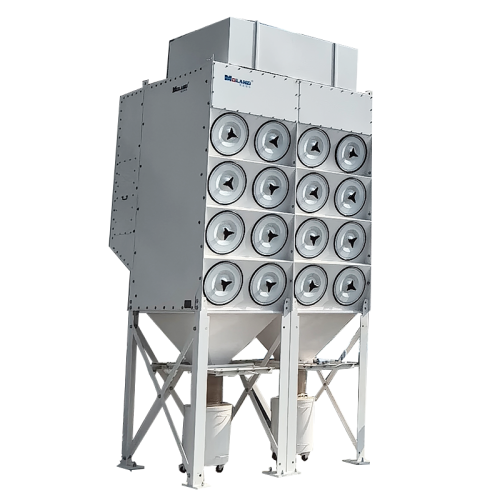

MLWF3000H-32T/3500H-32T

Stationary Dust Collector

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production and modular structure can be freely combined according to working conditions to ensure the scalability of power and filtration area.

  • Free combination on demand to meet various working conditions

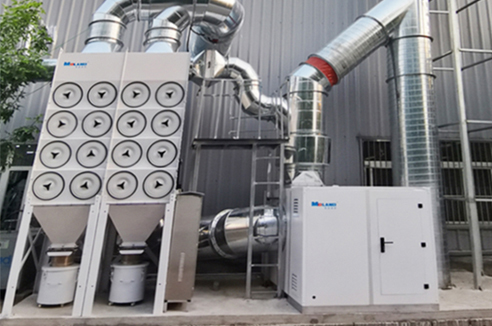

Centralized Dust Removal System

MLWF series centralized dust removal systems are designed for many applications, guaranteeing the best possible economic solutions in removing industrial contaminants. Dust collectors are an important consideration for your facility, and worker safety. Choosing the right model of duct collector will have an impact on air quality in your workplace. Cartridge dust collectors are often used in facilities where very sub-micron particles must be filtered, or where continuous filtration is a requirement.

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

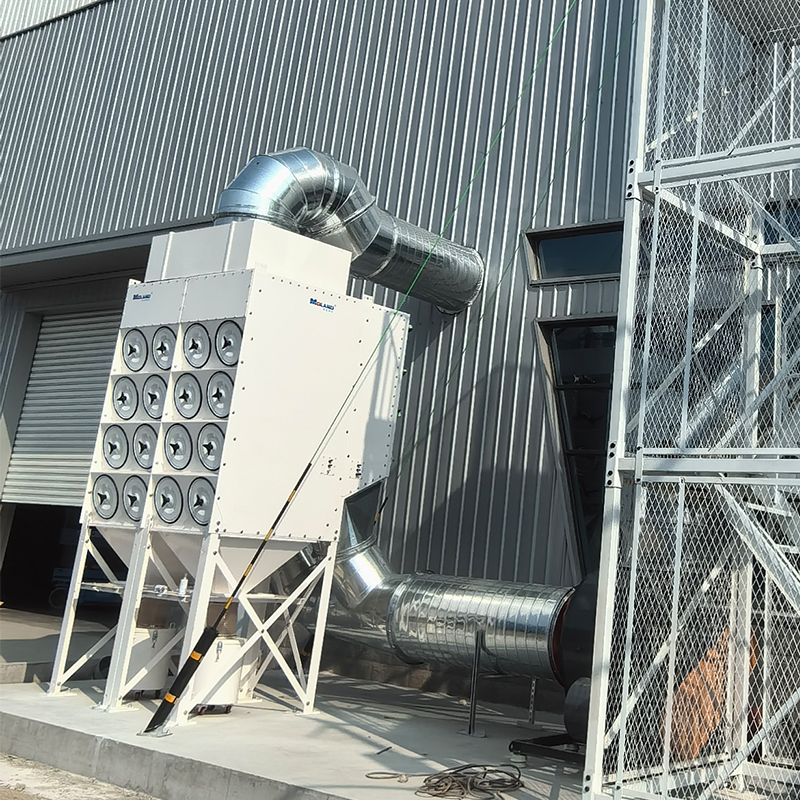

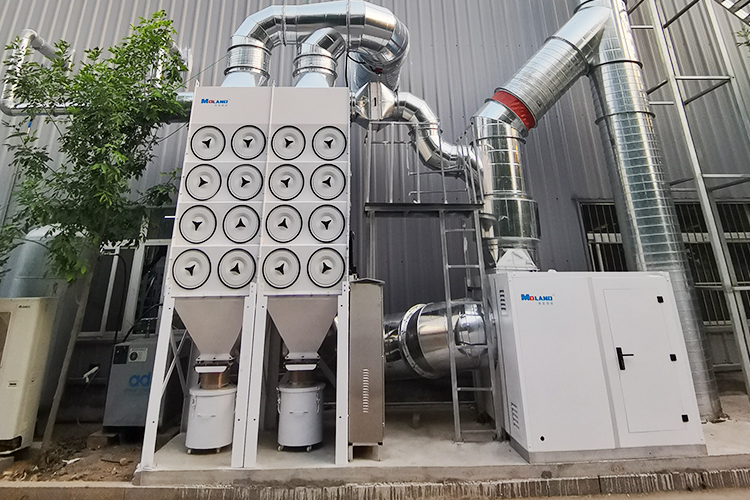

Industrial Dust Collection System

A central dust collection system is designed for workshop central dust removal. The dust collector creats a negative pressure at the dust source point and pull the fugitive material into the collector. At the end of the air ducts, there are dust suction hoods, extraction arms, independent working room for source dust collection. Moland dust collectors are commonly used in metalworking shops to improve air quality by capturing dust and other airborne particles.

  • Intelligent Control System

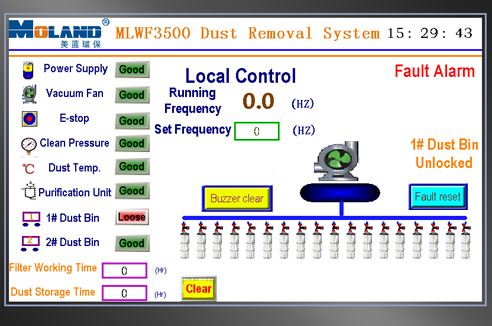

    1. Equipped with the intelligent control system independently developed by Moland, all function control and feedback information are displayed on the screen. Important parameters are password-protected to prevent misoperation.
    2. Optional Siemens system.
  • Lower Energy Costs

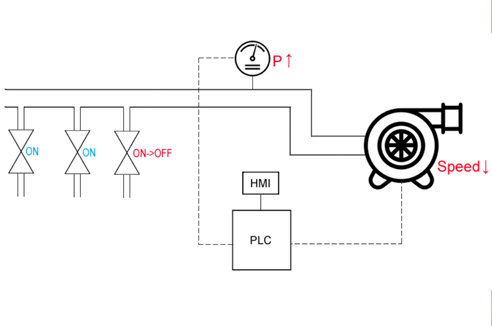

    1. The PLC monitors the air pressure in the pipeline according to the number of valves opened, and commands the inverter to adjust the frequency according to the target air pressure. The inverter controls the fan speed, and the real-time air pressure in the pipeline is fed back to the HMI, thereby reducing energy consumption while ensuring the dust removal effect.

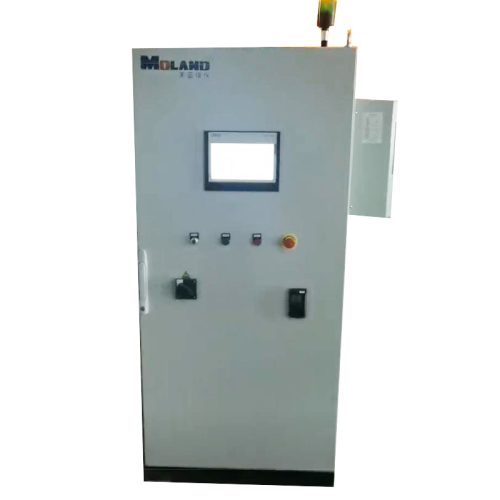

  • Electric Control Cabinet


    1. Independent electric control cabinet can be installed at any location according to the site conditions, which is convenient for users to operate and observe the equipment operation status at any time.
    2. The electric control cabinet uses high-quality housing and brand electrical components to ensure reliability and safety.
  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.
  • Flame-retardant Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.
    2. The filter cartridge is installed in an oblique manner, which occupies a small area and is easy and quick to install and remove.

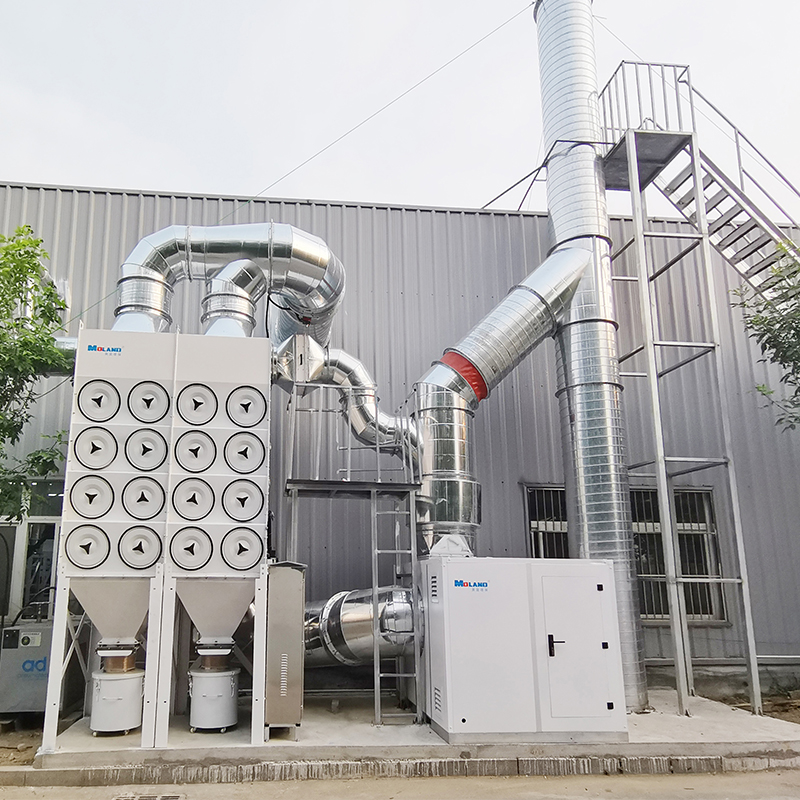

  • Modular Structure


    1. The modular structure can be freely combined according to working conditions to ensure the scalability of power and filtration area.
    2. The pressure rod type dust collection bucket has built-in casters for easy dumping.
    3. The equipment occupies a small area and is easy and convenient to maintain.

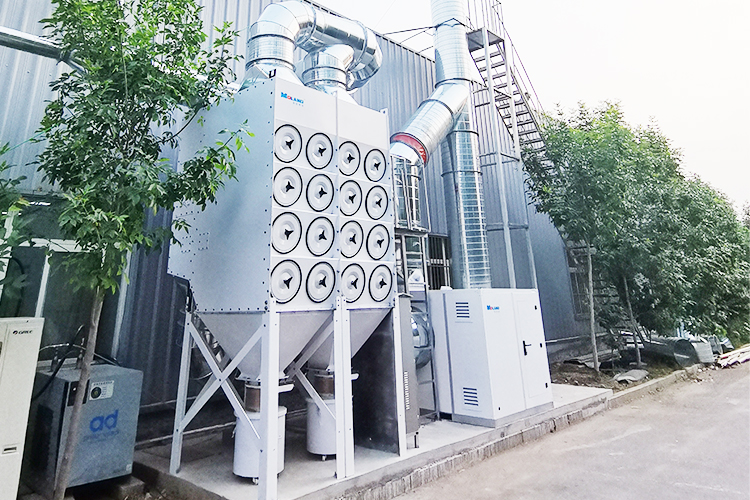

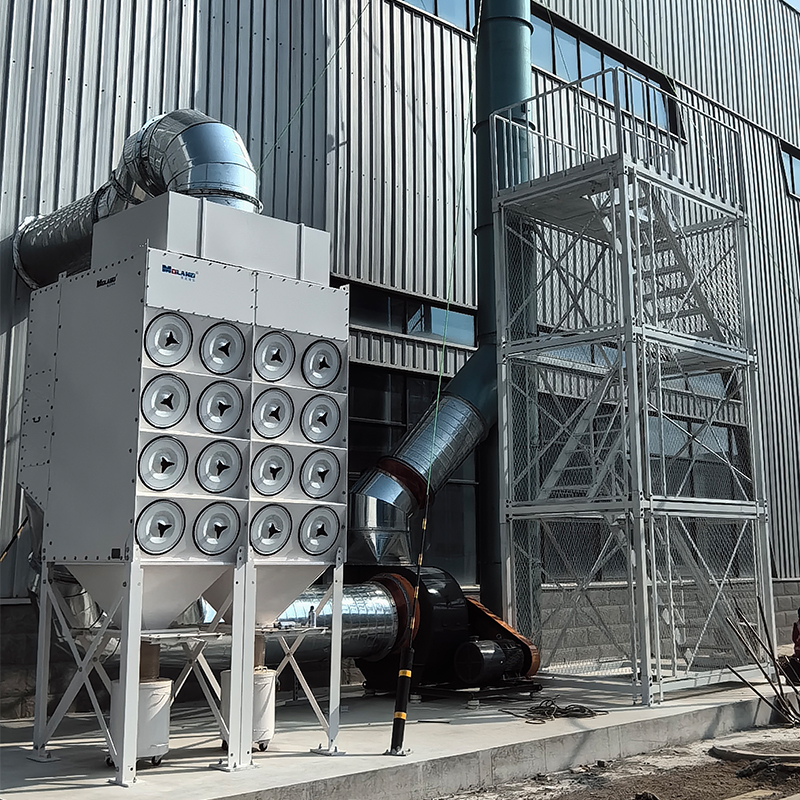

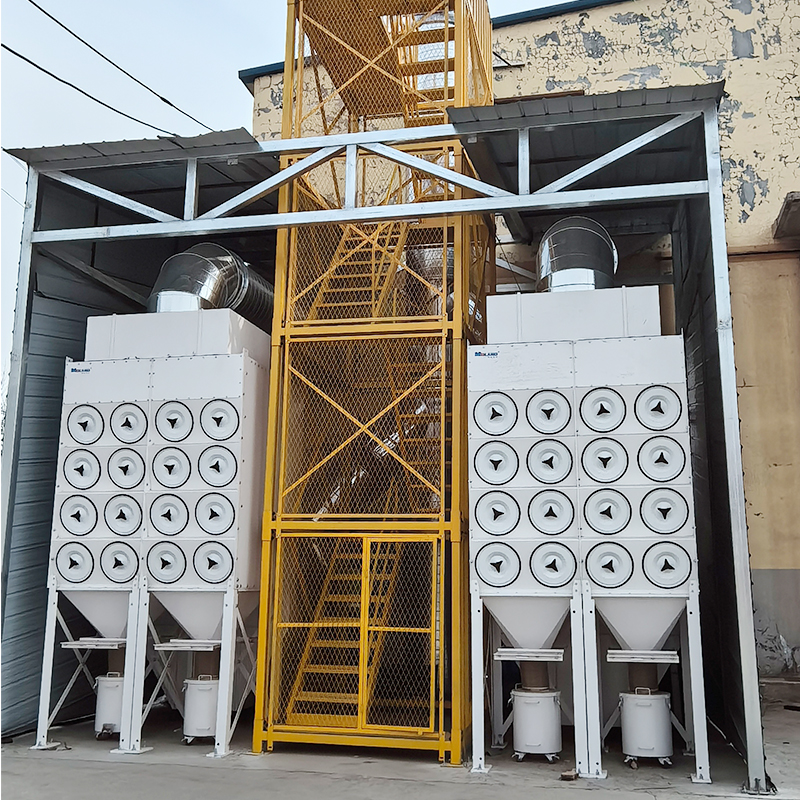

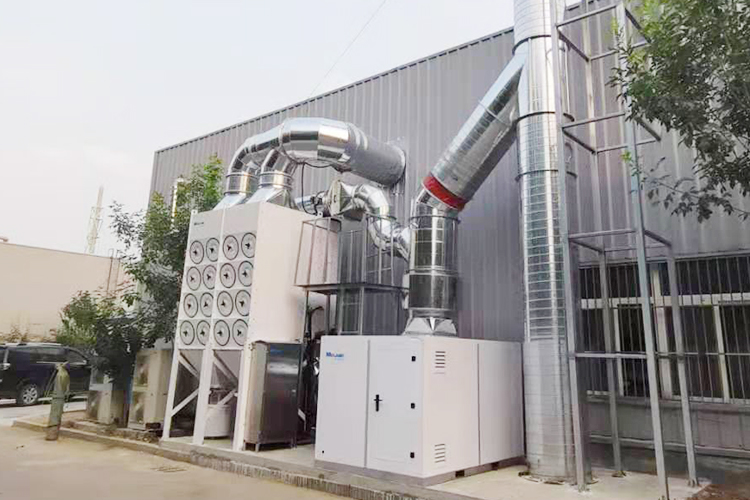

Applications

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
