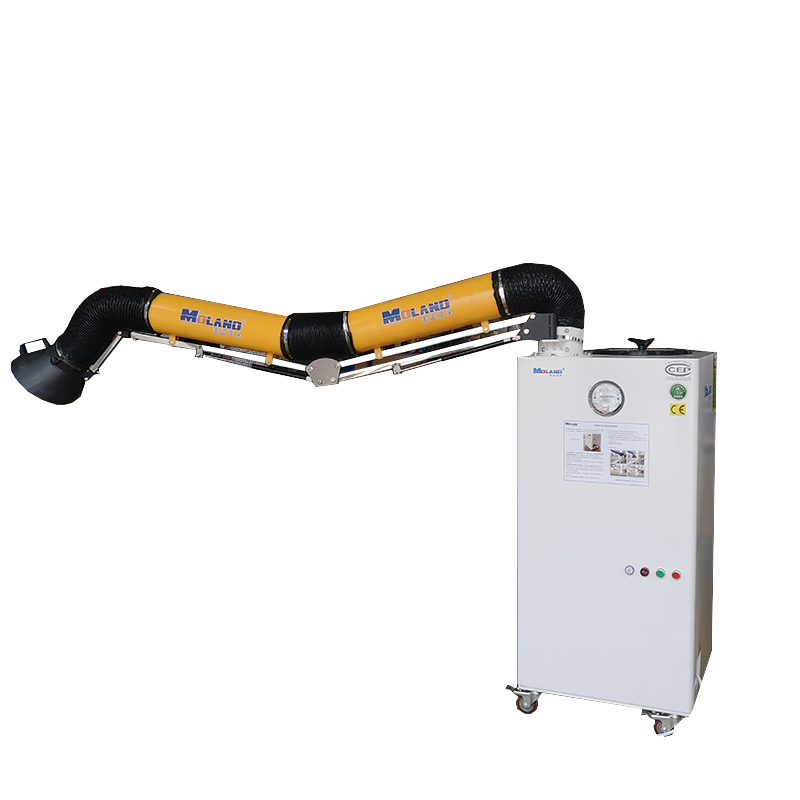

MLWF280

Mobile Fume Extractor

The MLWF280 is a robust mobile welding fume extractor created for daily use to control welding smoke and fumes. The high-capacity disposable filter can be easily changed and the rotating and swiveling exhaust hood enables use in a 360-degree radius and ensures minimal adjustments when welding.

  • Motor Power：2.2kw
  • Air Volume:2800m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Extraction Arm: Ф160mm*2m
  • Spark Arrestor: minimize the fire risk during the welding processes.
Get In Touch
  • Free combination on demand to meet various working conditions

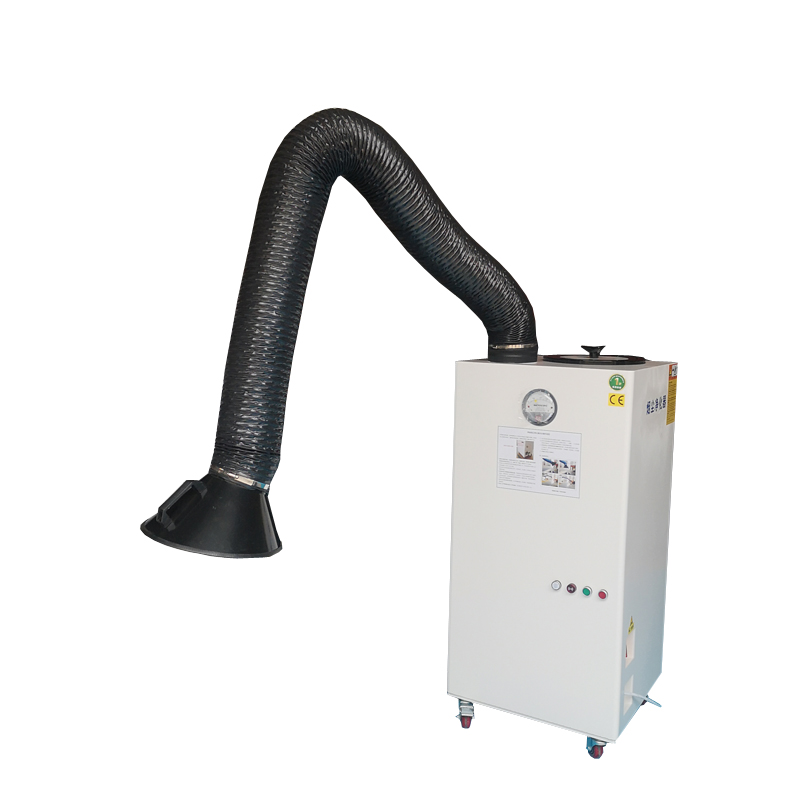

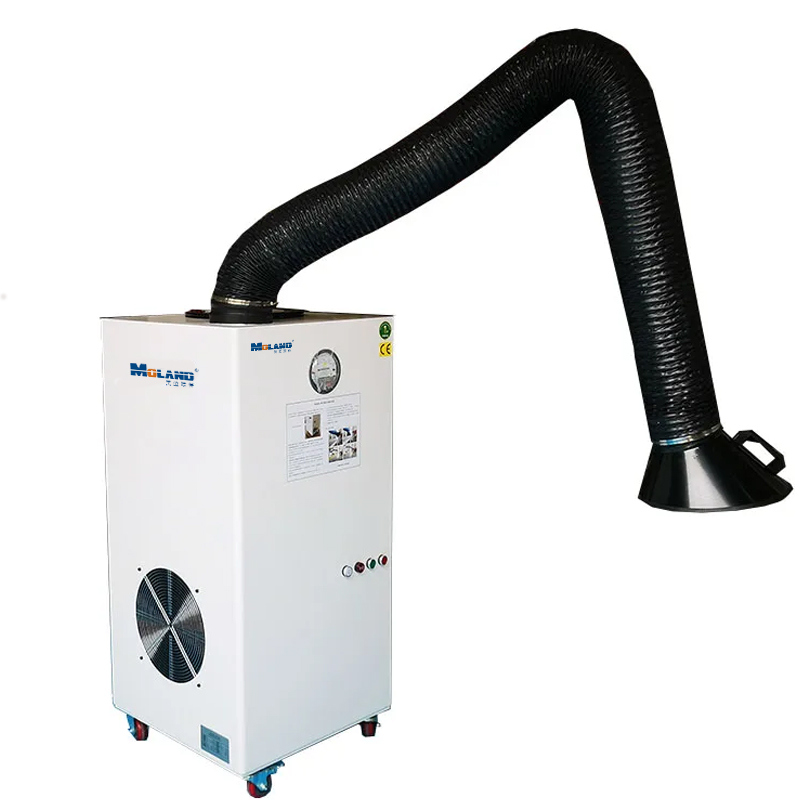

Movable Single-Arm Fume Extractor

MLWF280 is a mobile fume extractor with integrated fan and HEPA cartridge filter. The HEPA filter ( filter efficiency H13 ≥ 99.95%) is easily replacable. Thanks to the universal wheels and fixed wheels and the flexible extraction arm, this movable fume extractor is suitable for the extraction and filtration of welding fumes from variable position work stations.

Tech Specs

Product model MLWF280
Power 2.2KW
Working Voltage 380v/50Hz 3P
Air volume 2800m³/h
Filter accuracy 0.3μm
Filter material Imported flame-retardant PTFE coated polyester fiber
Cleaning Mode Manual
Filter area 10m²
Noise 68±3dBA
Dimensions 600*600*1305mm
Weight 135Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

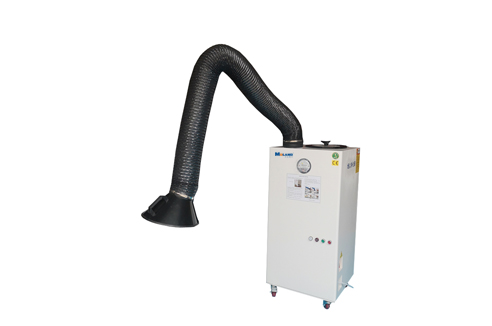

Mobile Fume Extractor with Single Extraction Arm

Mobile welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect. The extraction arm is used of self supporting joints, flexible hose and smooth steel tubing make this fume extraction arm easy to work with and keep it near the source of the air contaminants. So contaminants including dust, fumes, smoke and more are removed right at their source.

  • Flame-retardant PTFE Coated Filter


    1. Imported Japanese Toray brand flame-retardant PTFE coated polyester fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.

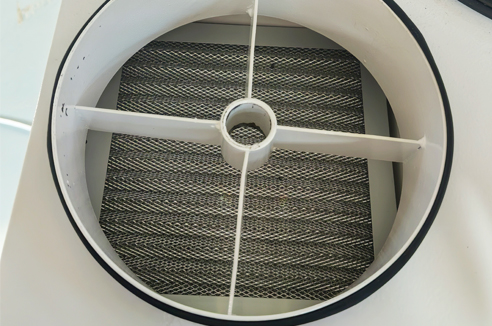

  • Spark Arrester


    1. The spark arrester helps to prevent potentially damaging, burning particulates generated during welding processes from entering the fume extractor.
    2. The spark arrester is located beneath the arm connection spigot.
    3. Easy to maintain and replace.

  • Movable and Simple


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. 160mm in diameter, 2m or 3m in length.
    3. Internal and external skeleton structures for your choose.

  • Suction Hood


    1. The suction hood is rotatable 360° and consequently be aligned with the welding seam into every position. Whether the welder is standing next or behind the fume extractor, optimum handling comfort is guaranteed.

  • Fan Chamber


    1. Brand fan, low noise and stable operation.
    2. CE standard brand electrical components, safe and reliable.
    3. CE standard circuit design.

Applications

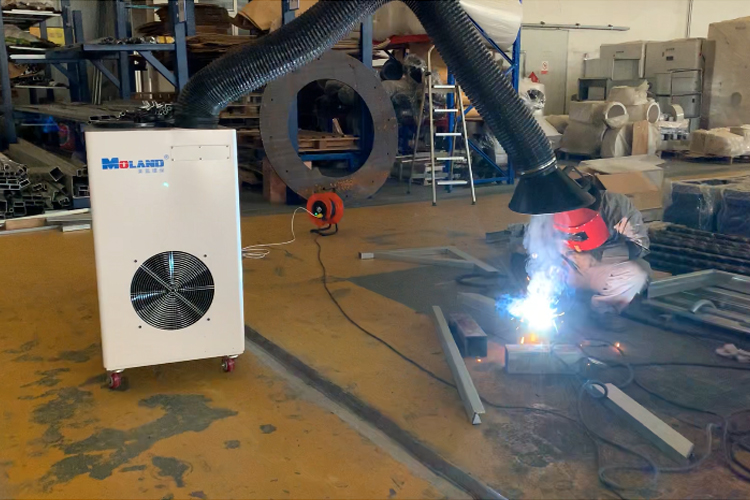

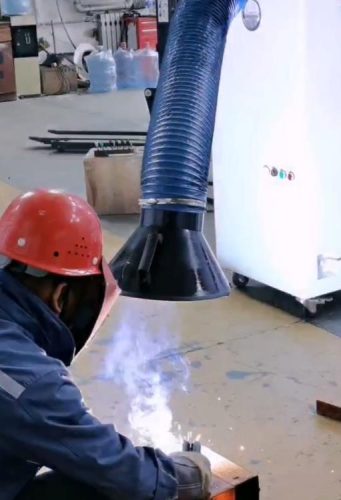

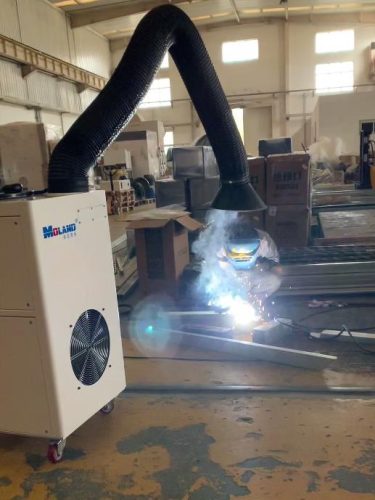

Welding

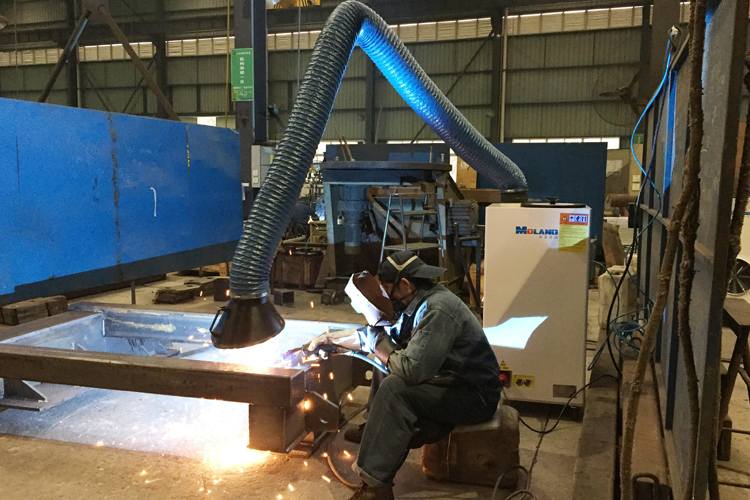

Welding

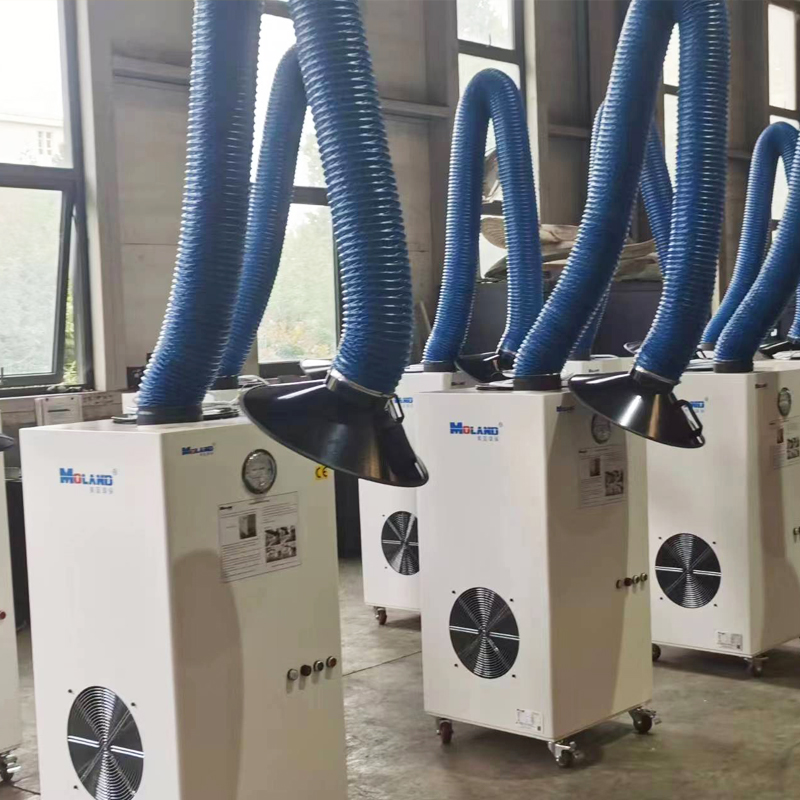

Moland factory fume extractor testing

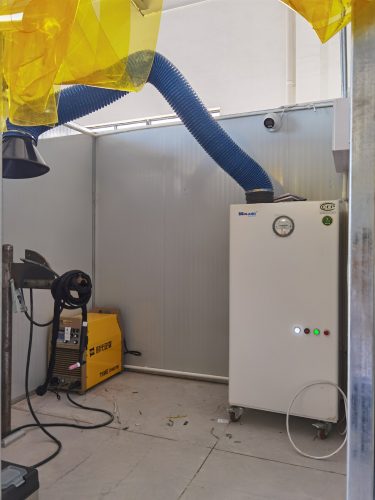

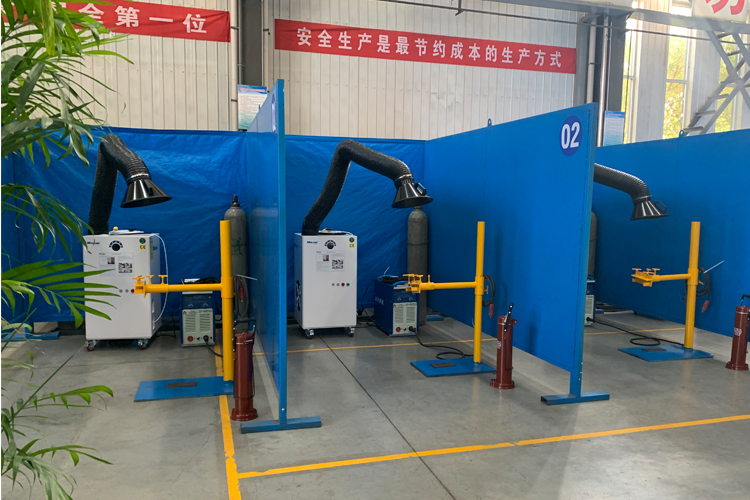

Welding Training School

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
