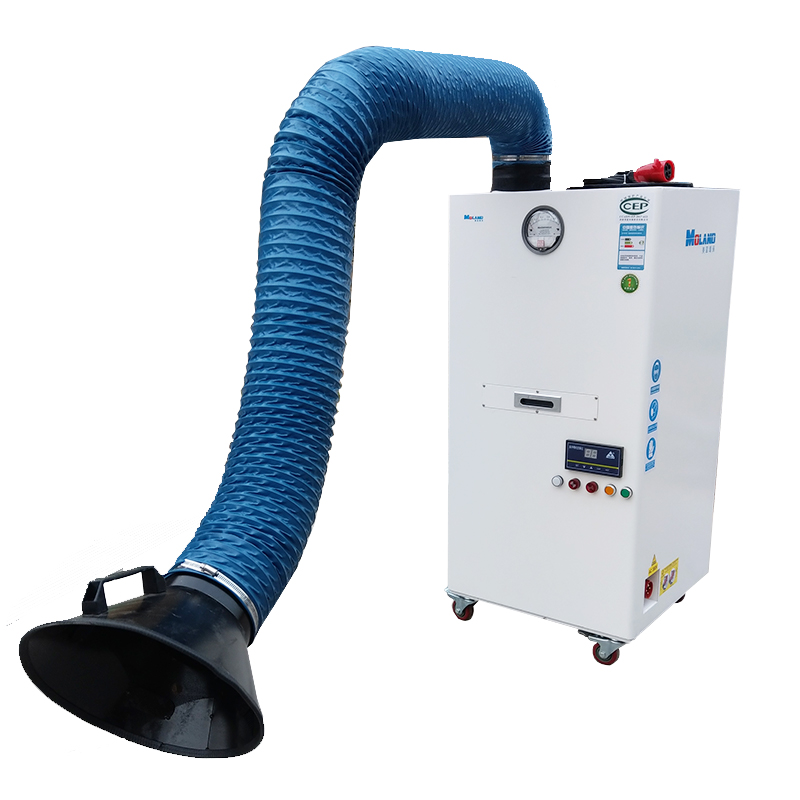

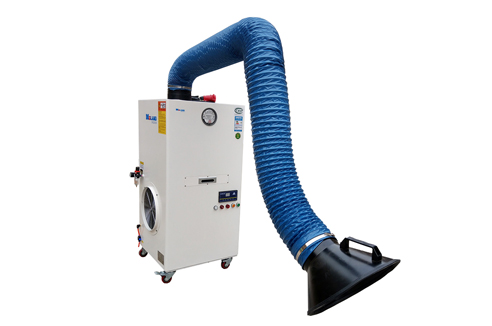

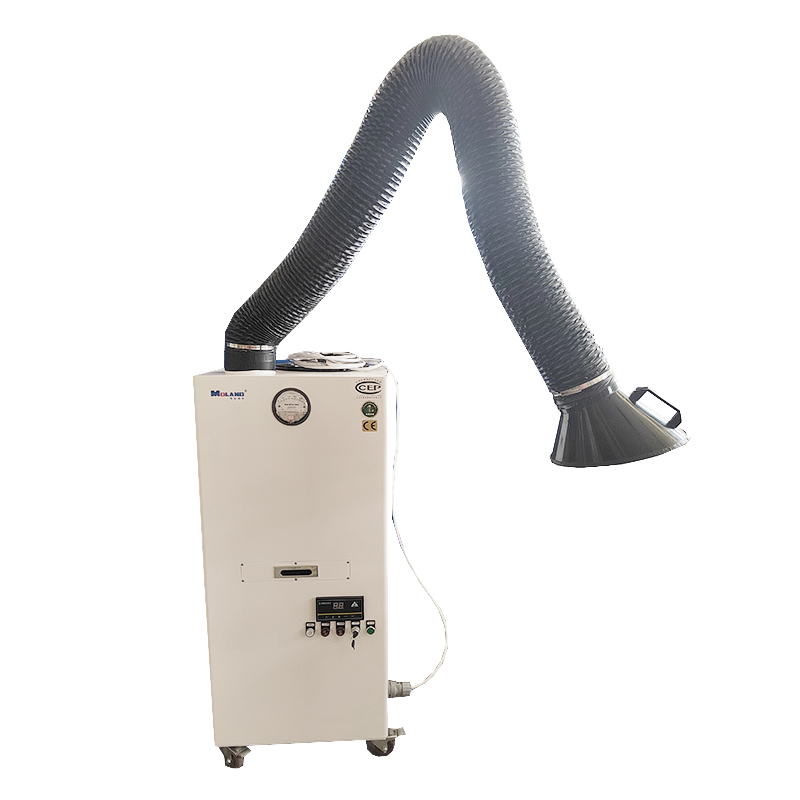

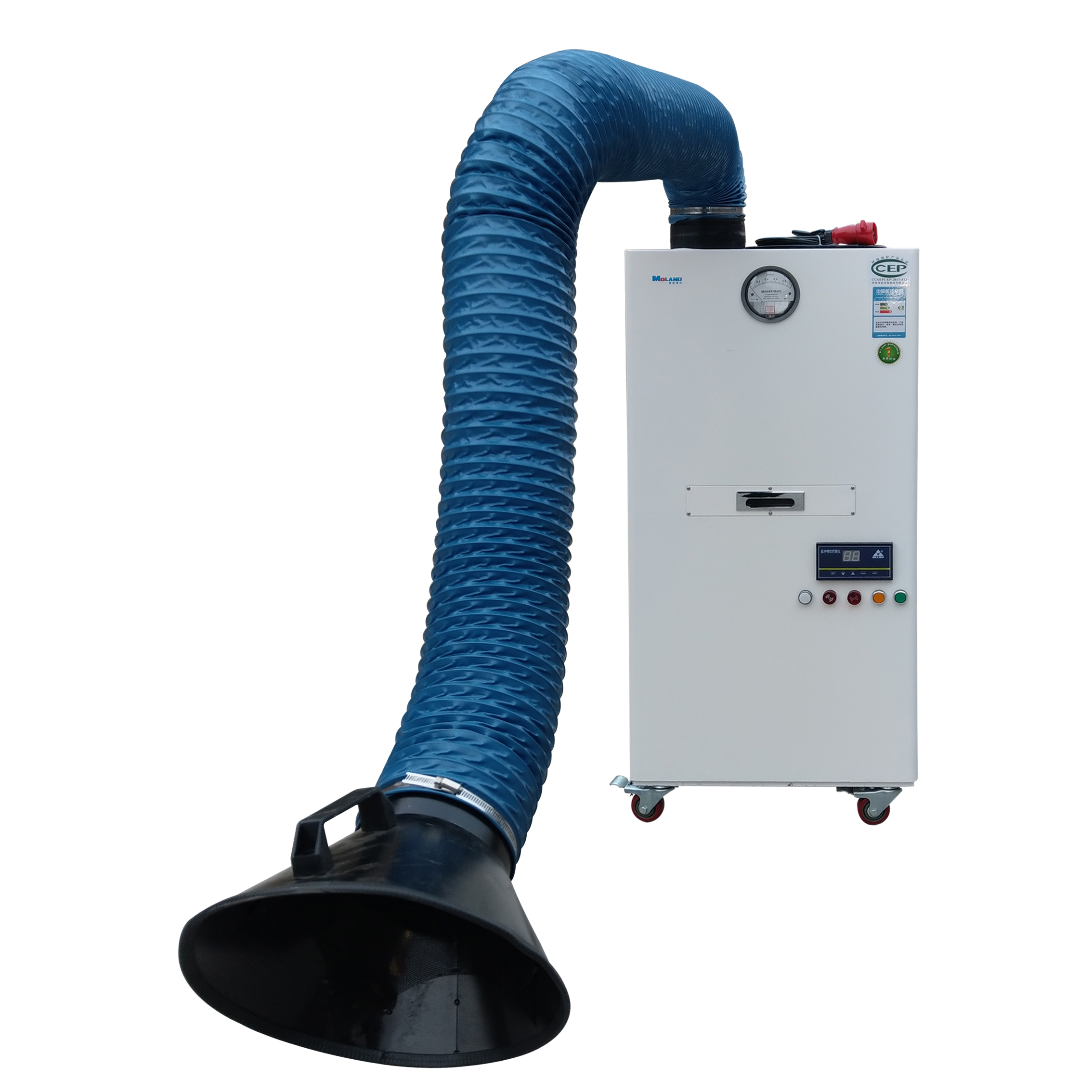

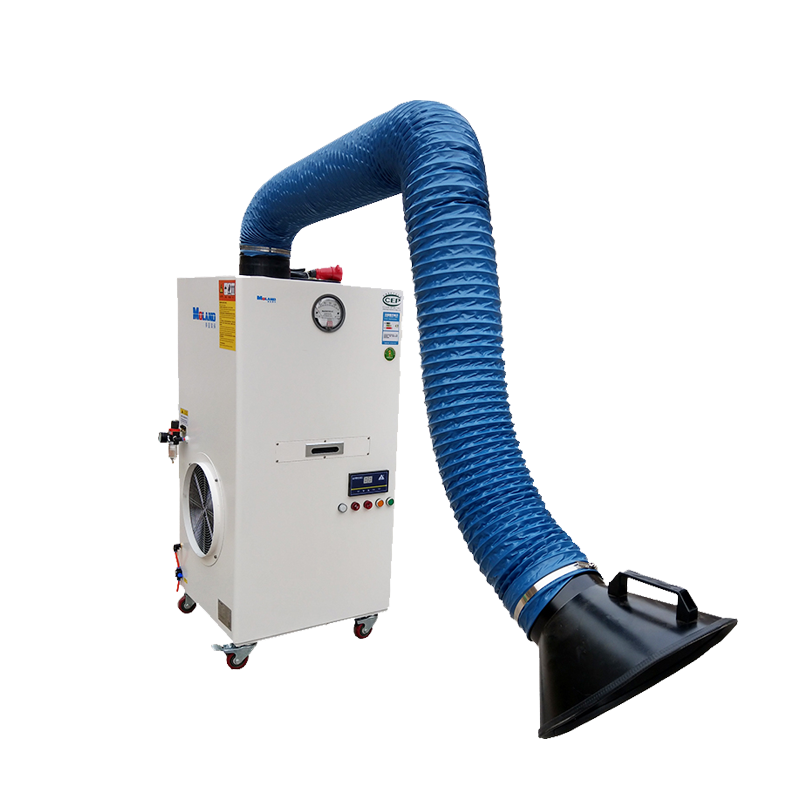

MLWF220FA

Mobile Fume Extractor

This MLWF220FA movable welding fume extractor is an economical and efficient product for cleaning and dedusting with automatic pulse jet cleaning system.

  • Motor Power：1.5kw
  • Air Volume:2200m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Extraction Arm: Ф160mm*3m
  • Cleaning Mode: Automatic pulse jet cleaning
  • Spark Arrestor: minimize the fire risk during the welding processes.
Get In Touch
  • Free combination on demand to meet various working conditions

Mobile Welding Fume Extractor

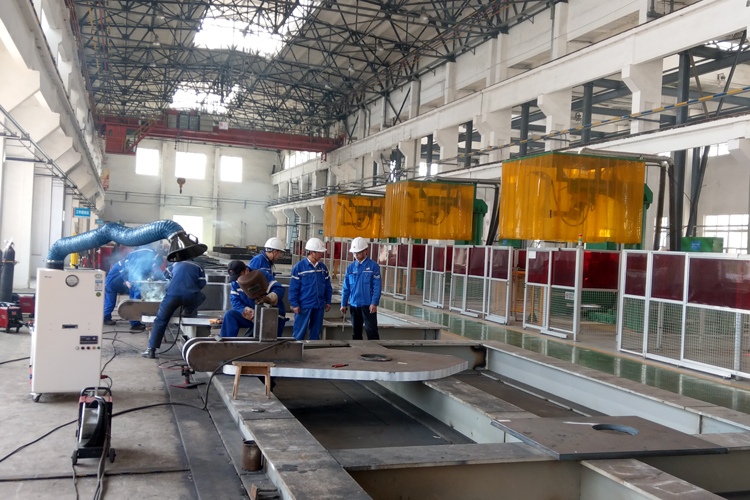

This light-duty weld fume extractor provides a flexible, portable fume extraction solution for manual MIG welding/gas metal arc welding/GMAW/stick welding applications, including stainless steel welding. Universal wheels allow the unit to be easily moved around the shop. With automatic pulse jet cleaning system and small size, this extraction units are ideal for manual welding applications for small-to-medium size fabricators, weld schools and vocational training programs.

Tech Specs

Product Model MLWF220FA
Power 1.5kw
Working Voltage 380v/50Hz 3P
Air Volume 2200m³/h
Filter Accuracy 0.3μm
Filter Material Imported flame-retardant coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter Area 10m²
Extraction Arm Ф160mm*3m
Noise 65dBA
Dimensions 600*600*1450mm
Weight 125Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Mobile Welding Fume Extractor

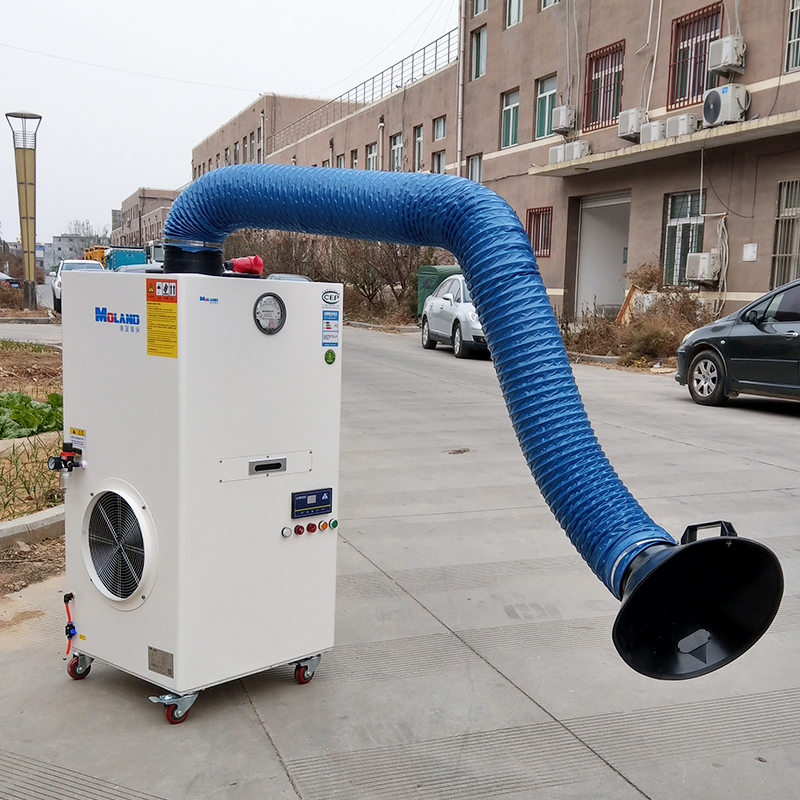

Mobile welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect. The extraction arm is used of self supporting joints, flexible hose and smooth steel tubing make this fume extraction arm easy to work with and keep it near the source of the air contaminants. So contaminants including dust, fumes, smoke and more are removed right at their source.

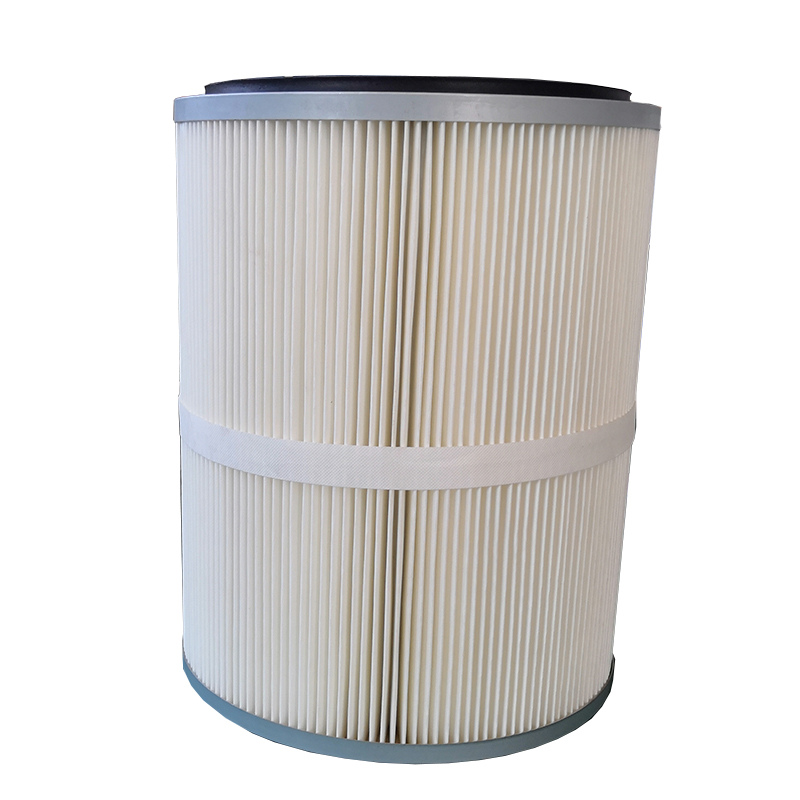

  • Flame-retardant PTFE Coated Filter


    1. Imported Japanese Toray brand flame-retardant PTFE coated polyester fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Movable and Simple


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?

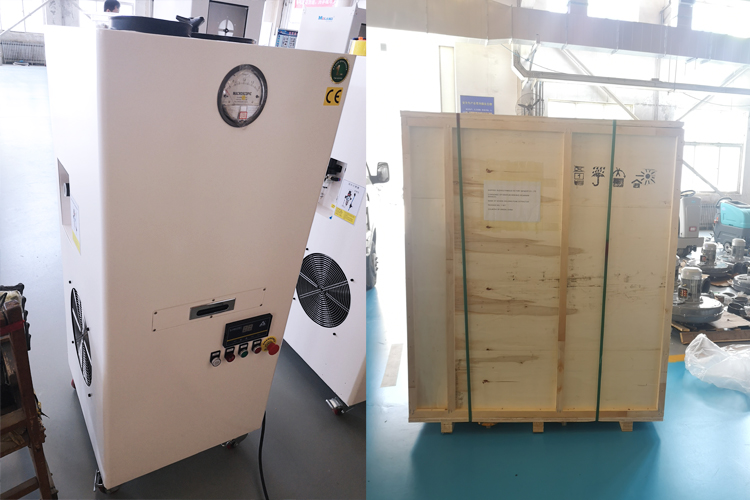

We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
