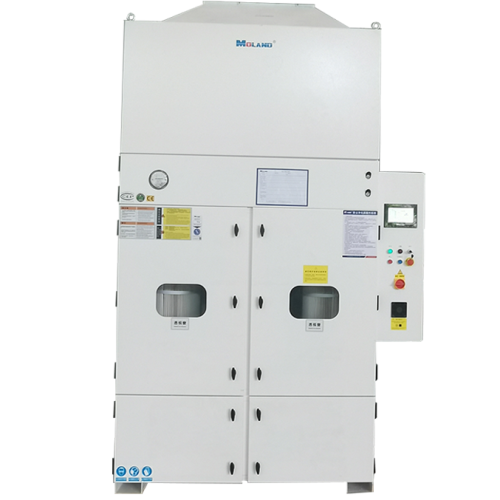

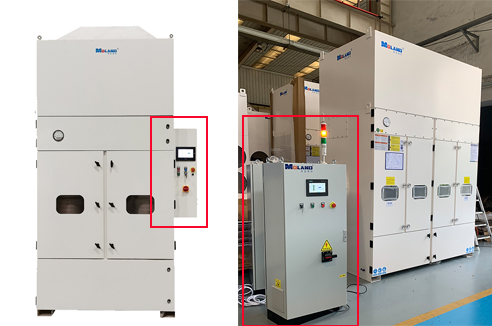

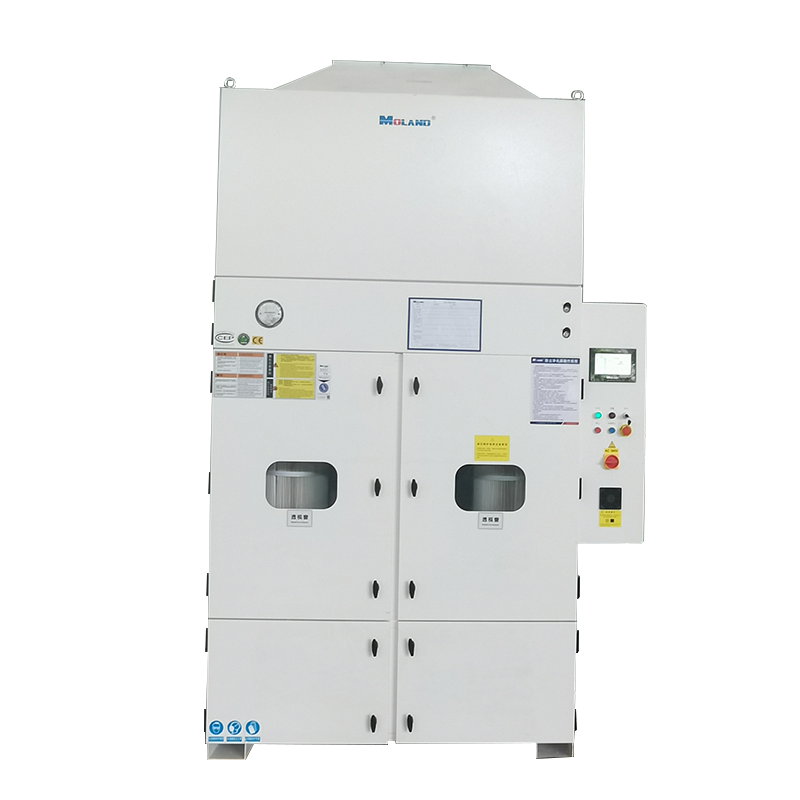

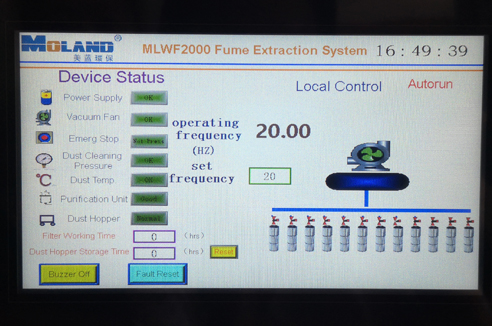

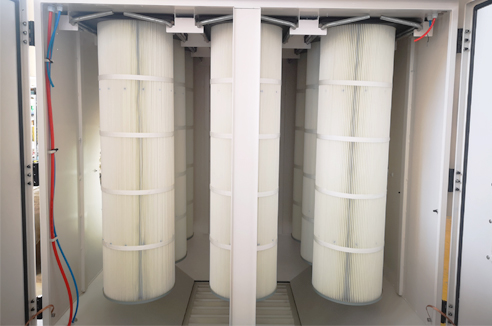

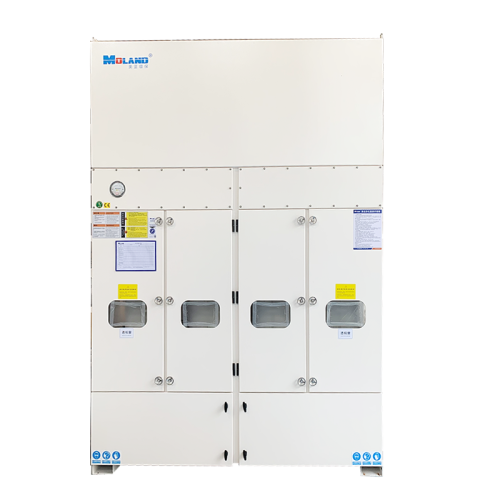

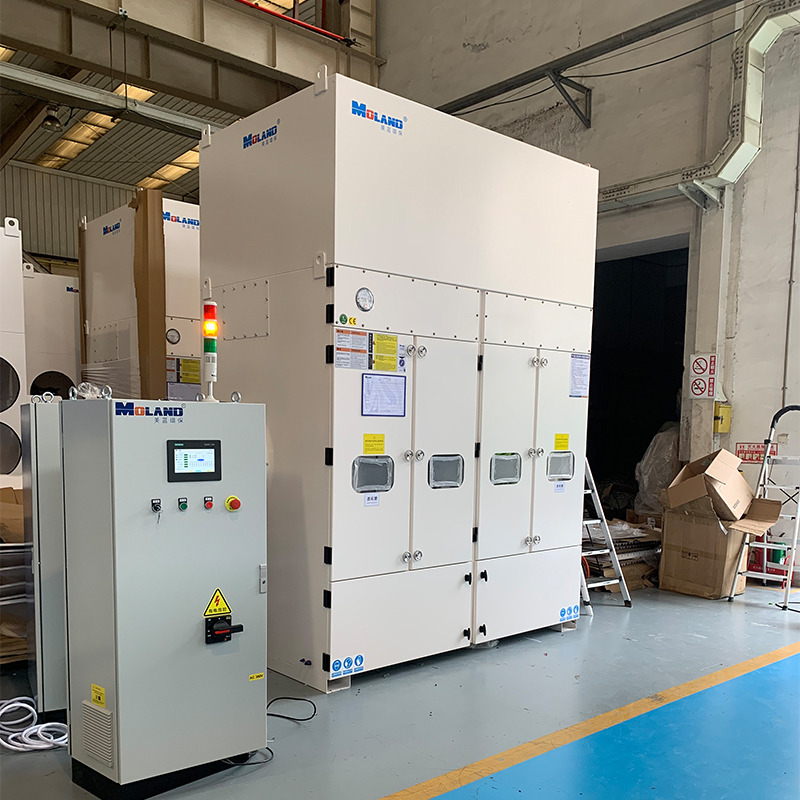

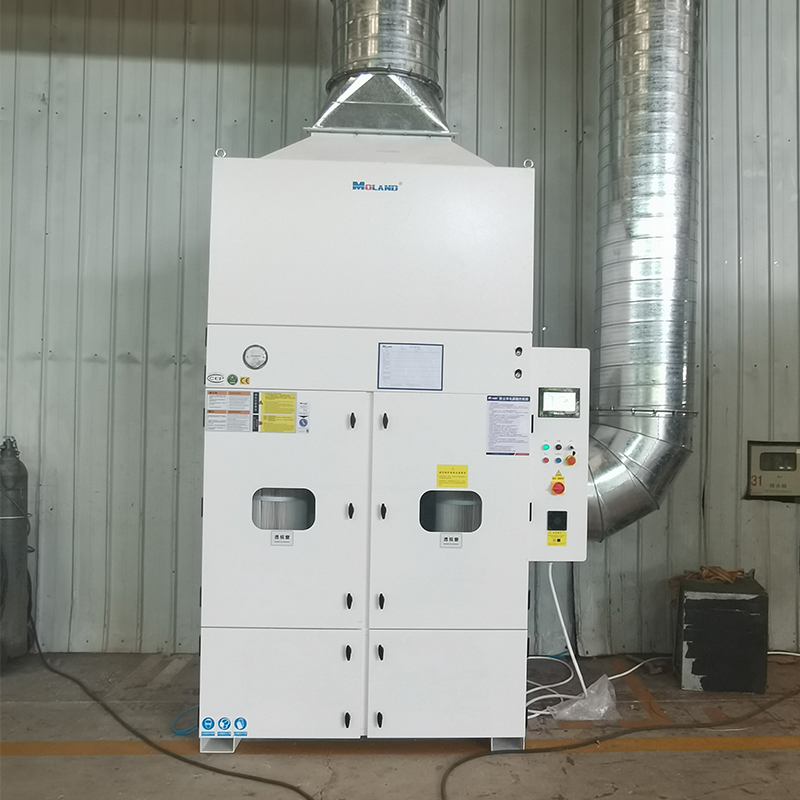

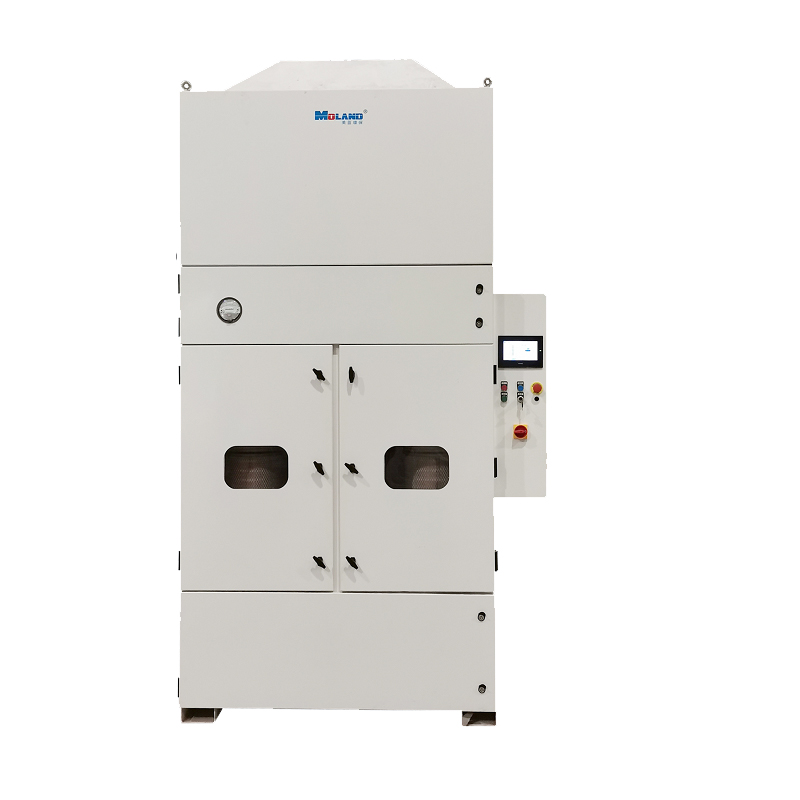

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Moland independently developed intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.
The blowing and suction type dust removal system is a ventilation air flow composed of blowing air and suction air, so it is adust removal method that can effectively control the diffusion of pollution sources.

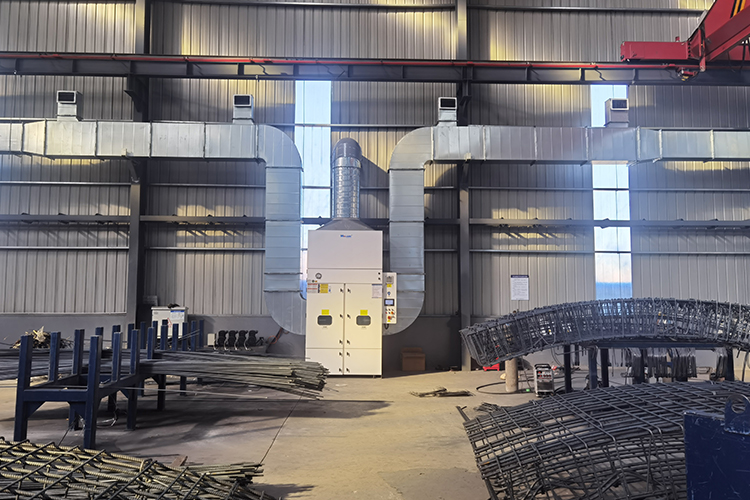

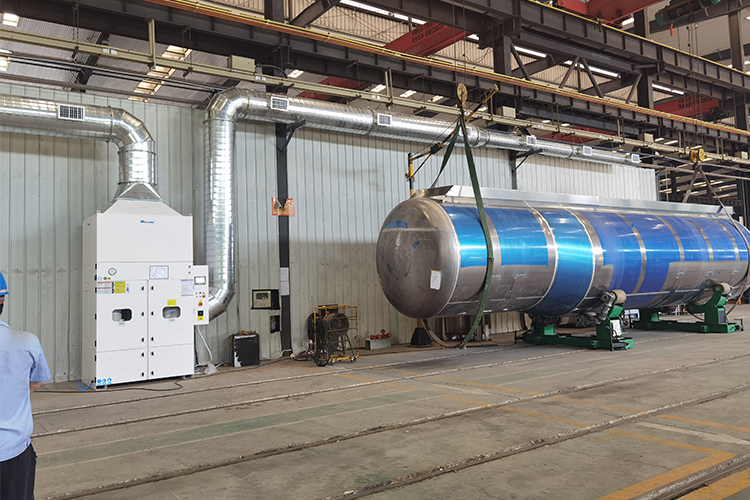

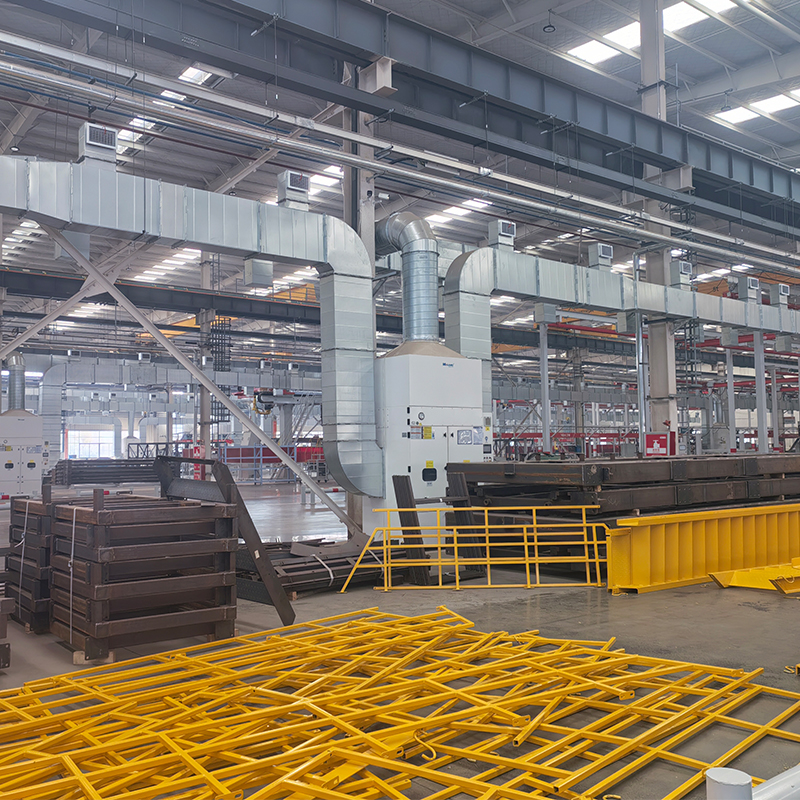

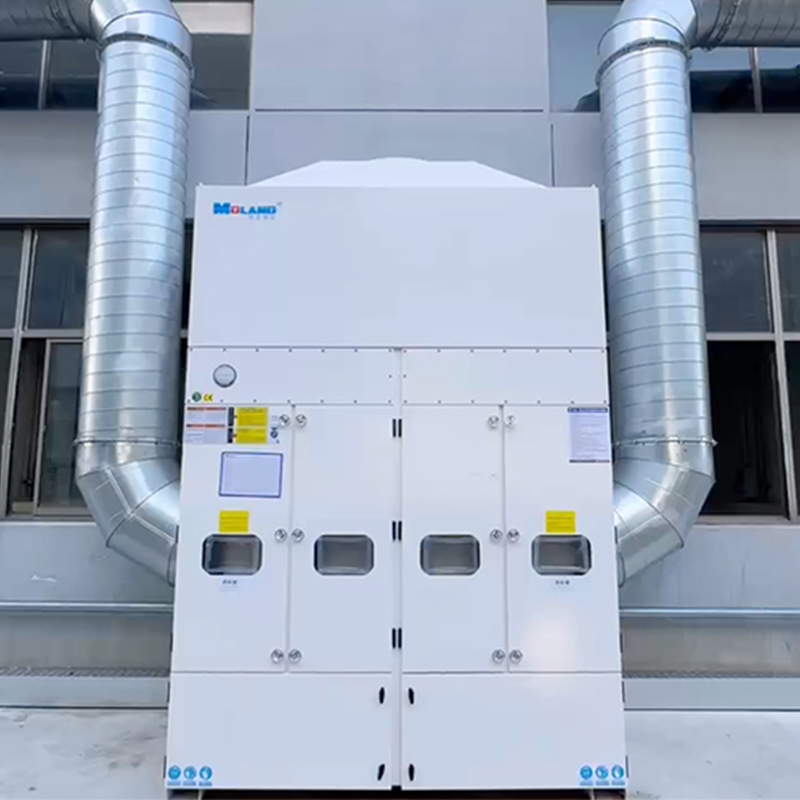

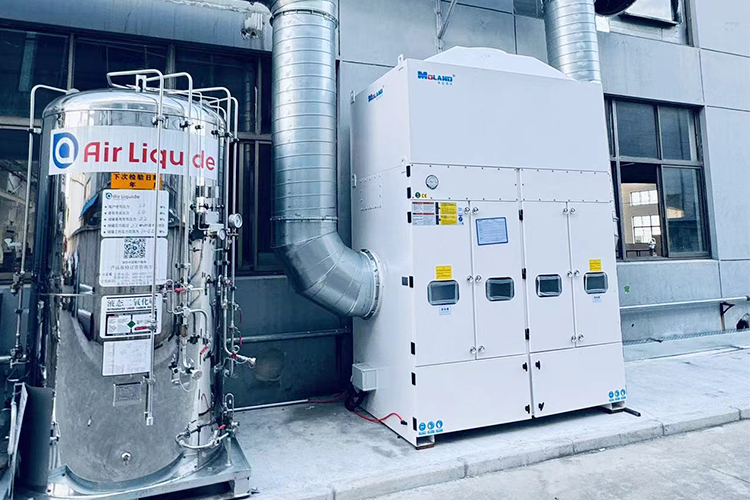

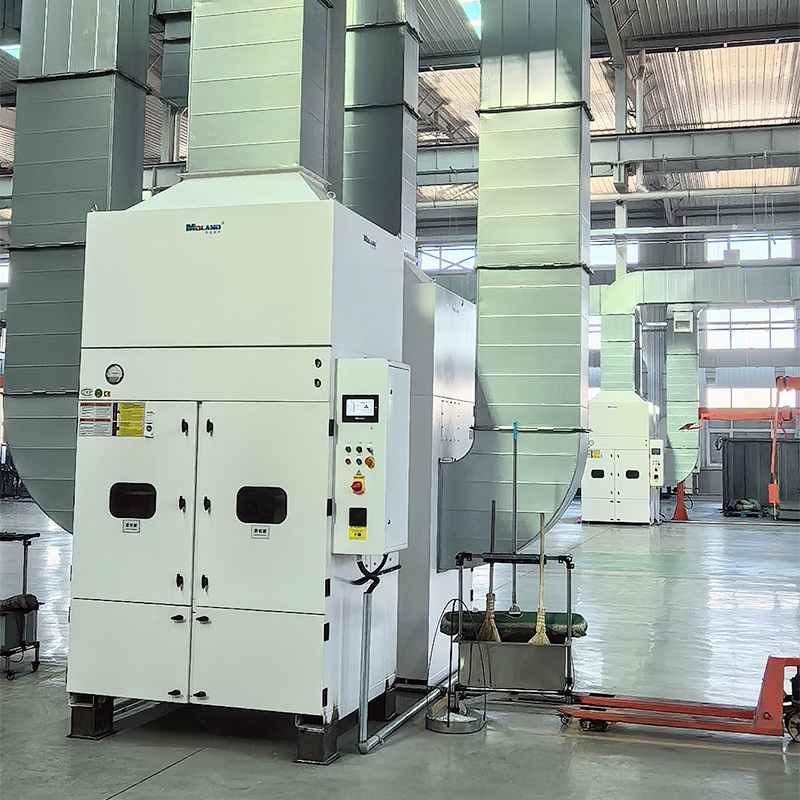

The dust removal method is to set the air outlet on the two-span center column or the single-span side column (wall), and install the air suction port on the opposite wall column to form a circulating air flow, drive the smoke and dust into the dust colector, and carry out the overall dust removal and purification of the smoke and dust in the workshop. This system occupies a small area and has obvious purification effect. lt is suitable for dust and smoke purification in more complex production workshops.
| IMG |  |
 |
|
| Product model | MLWF2000C-9T | MLWF3000C-12T | |
| Power | 15kw | 22kw | |
| Working Voltage | 380v/50Hz 3P | 380v/50Hz 3P | |
| Air volume | 20000m³/h | 30000m³/h | |
| Filter accuracy | 0.3μm | 0.3μm | |
| Filter material | Imported flame-retardant PTFE coated polyester fiber | ||
| Cleaning Mode | Automatic pulse jet cleaning | ||
| Filter area | 259m² | 345m² | |
| Noise | 75±3dBA | 75±3dBA | |
| Dimensions | 1850*1280*3100mm | 2500*1380*3400mm | |
| Weight | 1100±30Kg | 1300±30Kg | |
Dust collectors are devices used to minimize shop debris and keep working spaces clean. Moland dust collection systems are commonly used in metalworking shops to improve air quality by capturing dust and other airborne particles.
