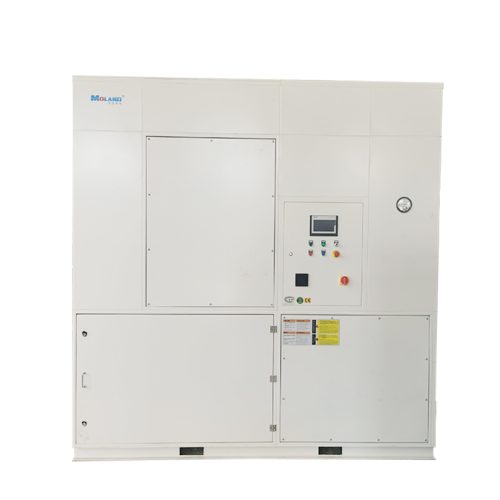

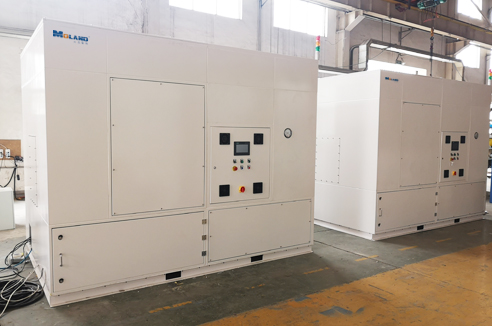

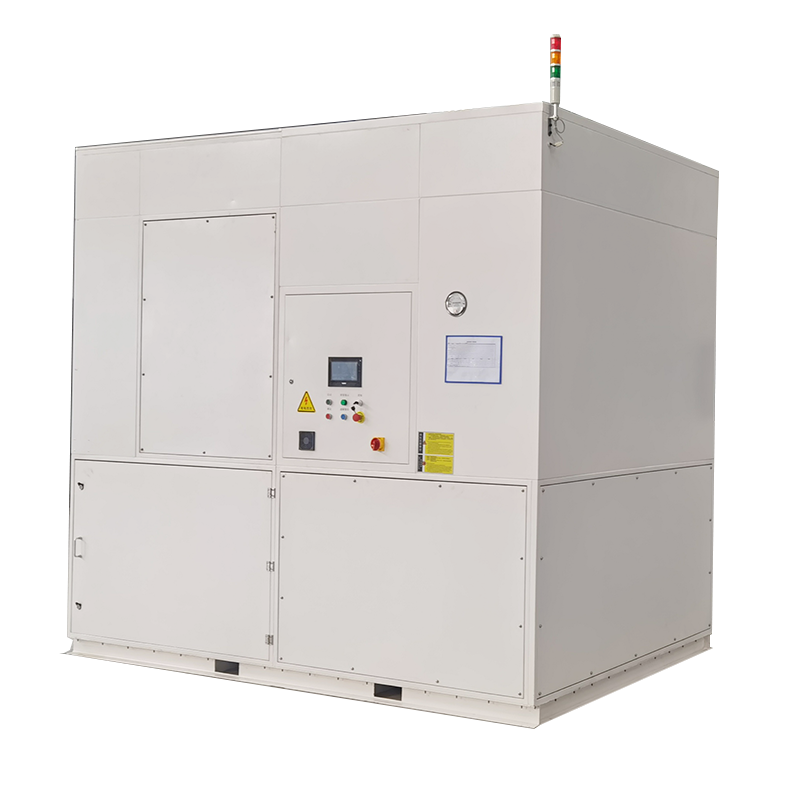

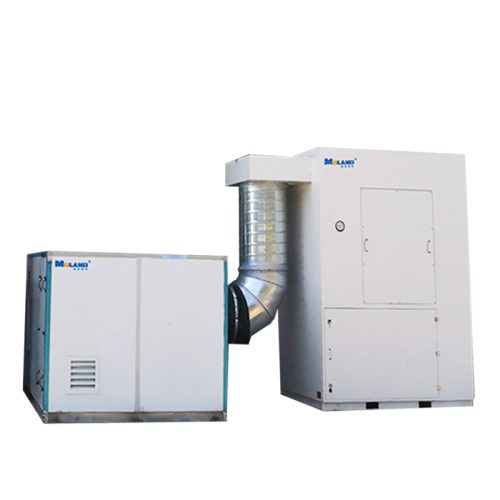

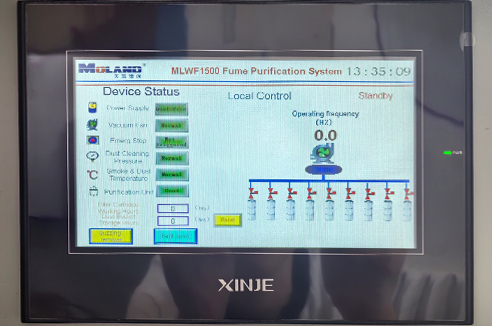

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Moland independently developed intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.
Dust collectors are an important consideration for your facility, and worker safety. Choosing the right model of duct collector will have an impact on air quality in your workplace. Cartridge dust collectors are often used in facilities where very sub-micron particles must be filtered, or where continuous filtration is a requirement.

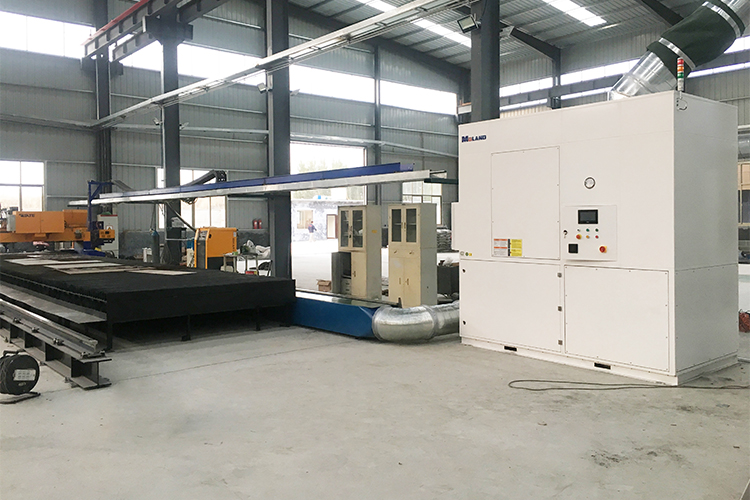

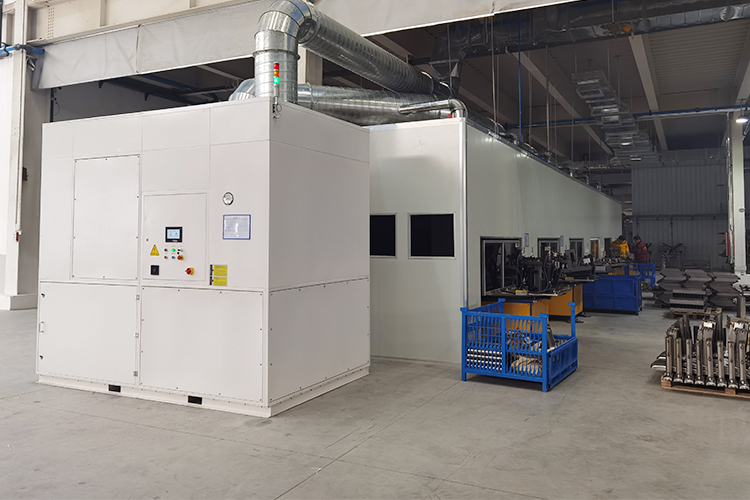

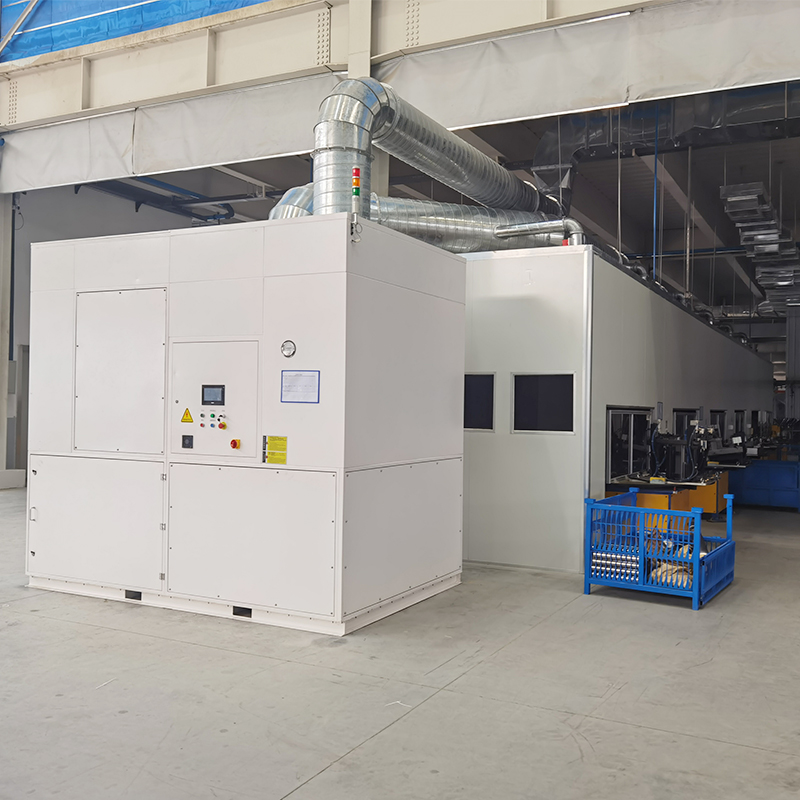

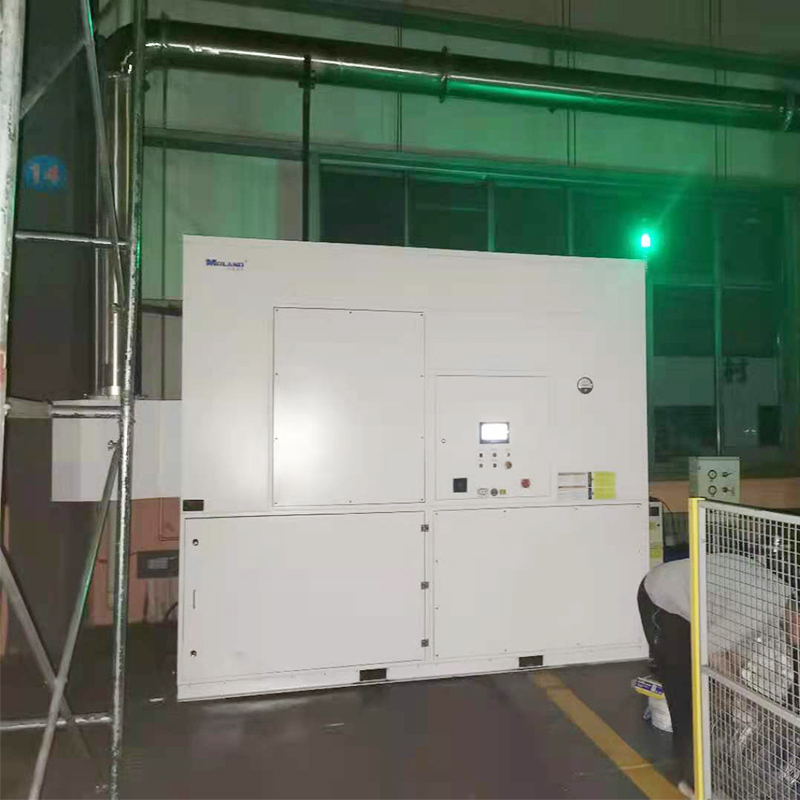

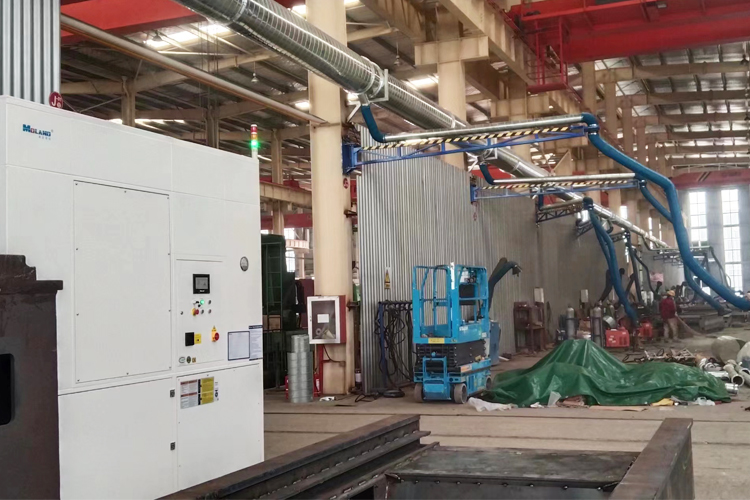

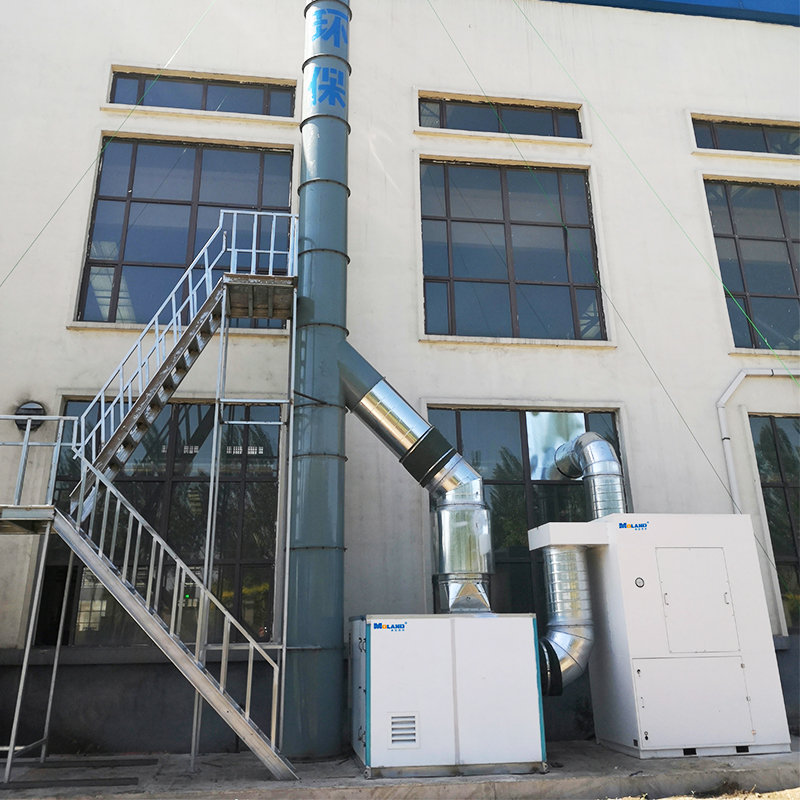

Industrial centralized dust removal system is often used for centralized collection and purification of smoke and dust in metalworking workshops. The system includes industrial dust collector, electronic control system, air duct, terminal collection device (suction arm, dust hood, etc.)
| IMG |  |
 |
|
| Product model | MLWF2000 integrated type | MLWF2000 split type | |
| Power | 22kw | 22kw | |
| Working Voltage | 380v/50Hz 3P | 380v/50Hz 3P | |
| Air volume | 20000-22000m³/h | 20000-22000m³/h | |
| Filter accuracy | 0.3μm | 0.3μm | |
| Filter material | Imported flame-retardant PTFE coated polyester fiber | ||
| Cleaning Mode | Automatic pulse jet cleaning | ||
| Filter area | 240m² | 240m² | |
| Noise | 75±3dBA | 75±3dBA | |
| Dimensions | 3060*1955*2400mm | 2200*1550*2400mm | |
| Weight | 1900±30Kg | 1800±30Kg | |
The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.
