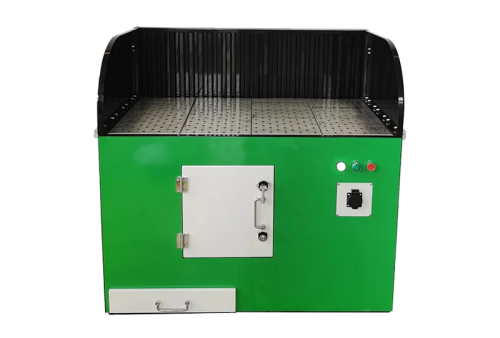

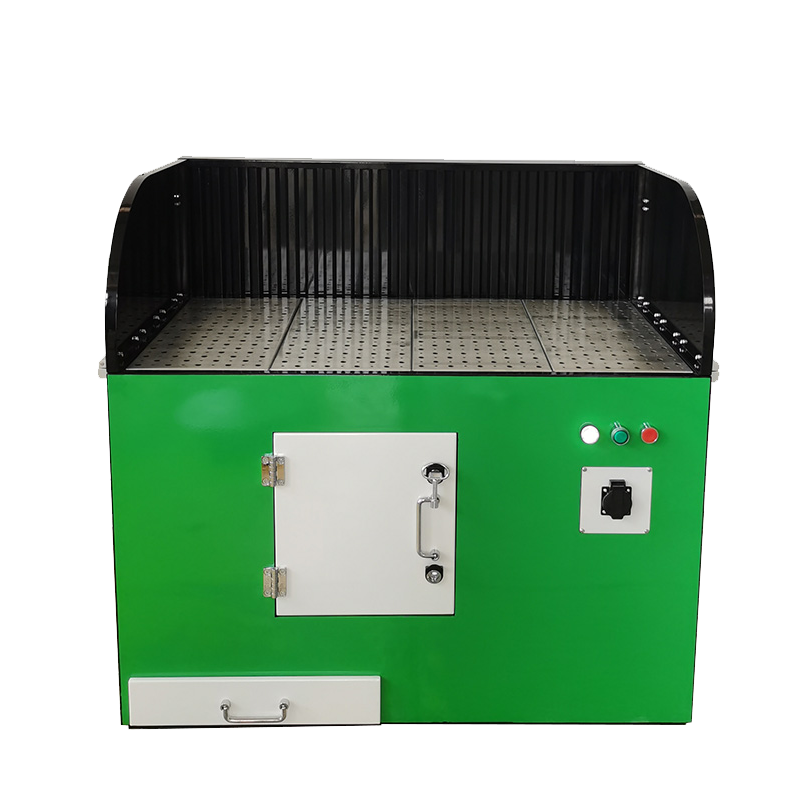

MLWF100D/150D/200D

Grinding Dust Collector

The MLWF Downdraft Table are great for welding, grinding, laser cleaning or plasma cutting for small to medium size parts.

  • Motor Power：1.1/1.5/2.2kw
  • Air Volume:1500/2500/3000m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • 3-Stage Filter: Metal mesh filter, Primary filter, HEPA filter

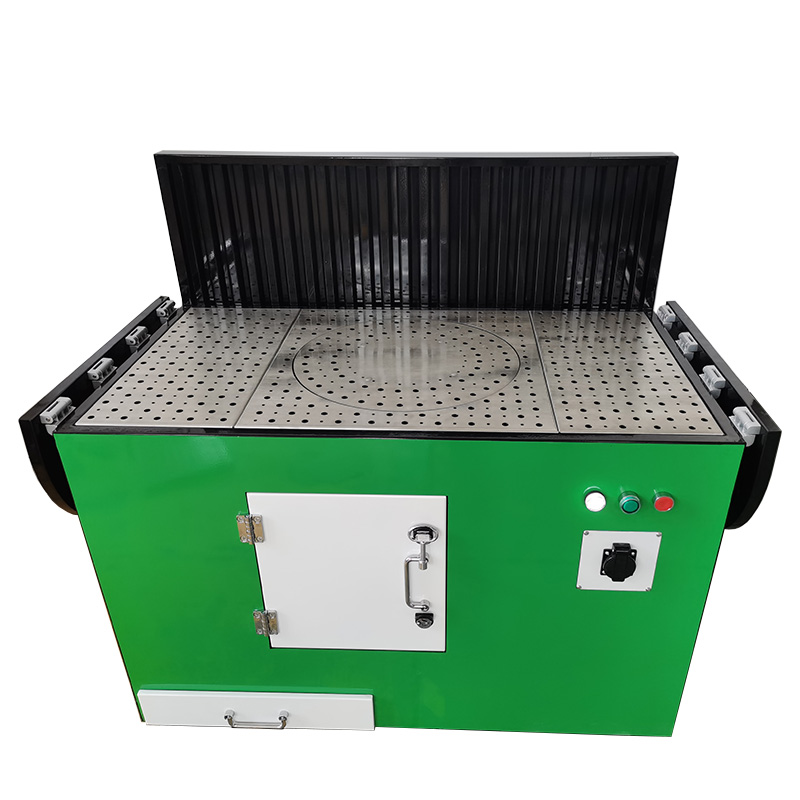

  • The tabletop is equipped with a turntable for easy polishing.
  • Grinding/Metalworking downdraft table.
Get In Touch Brochure
  • Free combination on demand to meet various working conditions

Metalworking Downdraft Table

The MLWF Grinding/Metalworking Downdraft Table with Vented Back is a functional self-contained downdraft workstation that provides efficient dust and fume capture while maintaining operator versatility. Standard units come with both downdraft and backdraft airflow – this combination increases the efficiency of the system to contain airborne dust or fumes while performing applications such as grinding or welding. The standard pin-hinged, foldable side wings of the dust and fume extraction table help to efficiently direct airflow and also provide operational flexibility to work on parts that vary in size.

Tech Specs


Product model MLWF100D MLWF150D MLWF200D
Power(KW) 1.1 1.5 1.1*2
Working Voltage 220v/50Hz 1P 380v/50Hz 3P 380v/50Hz 3P
Air volume(m³/h) 1500 2500 3000
Filter accuracy 0.3μm 0.3μm 0.3μm
Filter material Metal mesh filter, Primary filter, HEPA filter
Cleaning Mode Manual Manual Manual
Noise 75±3dBA 75±3dBA 75±3dBA
Dimensions 1000*600*1150mm 1500*800*1150mm 2000*800*1150mm
Weight 105Kg 150Kg 260Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Product Performance

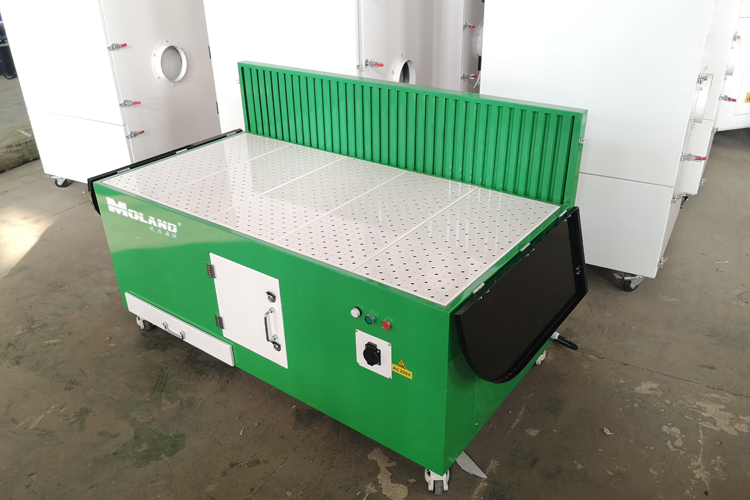

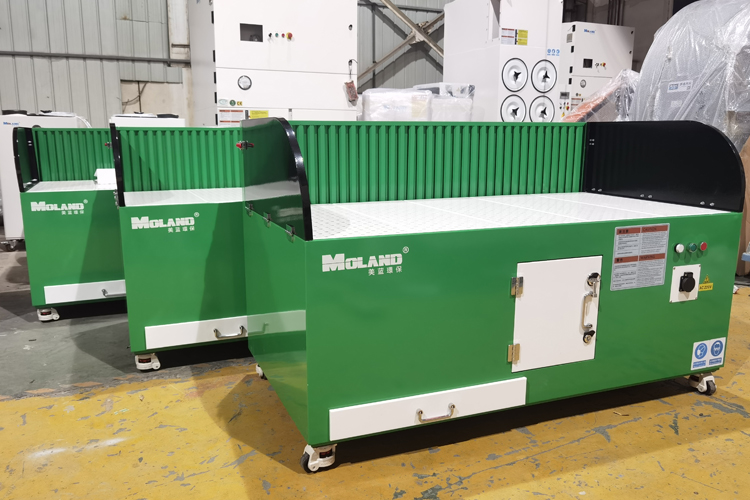

  • * Integrated Structure


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

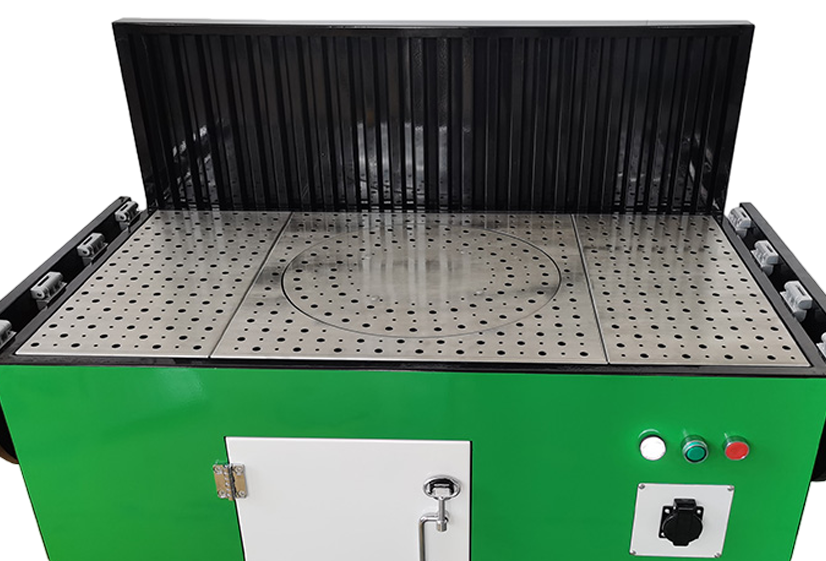

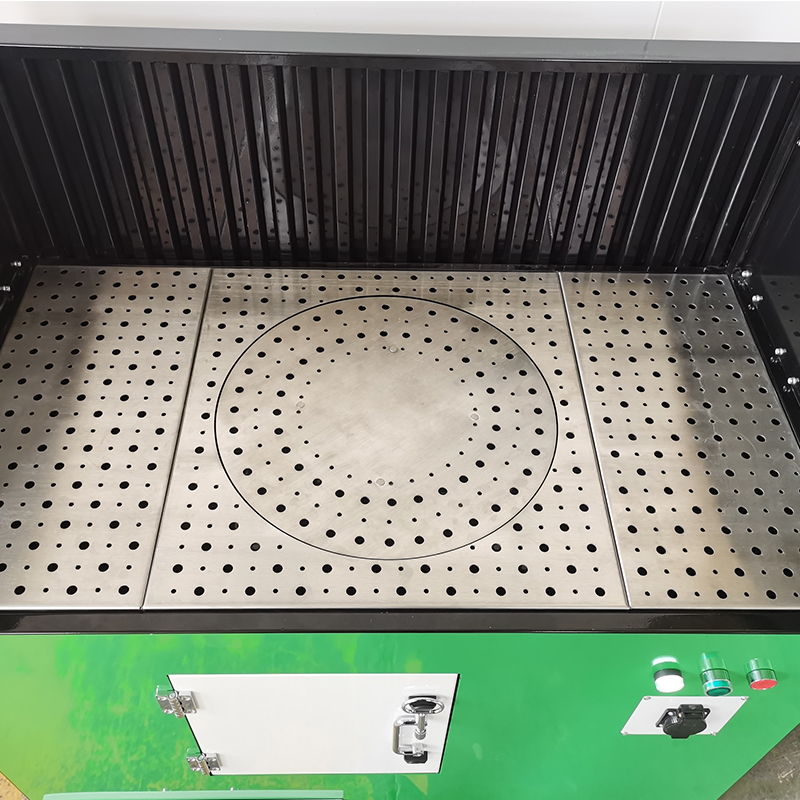

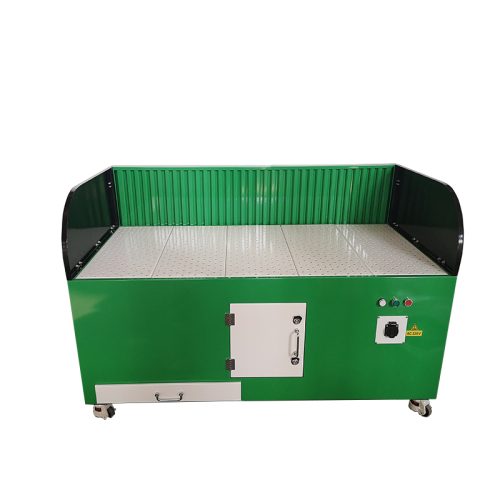

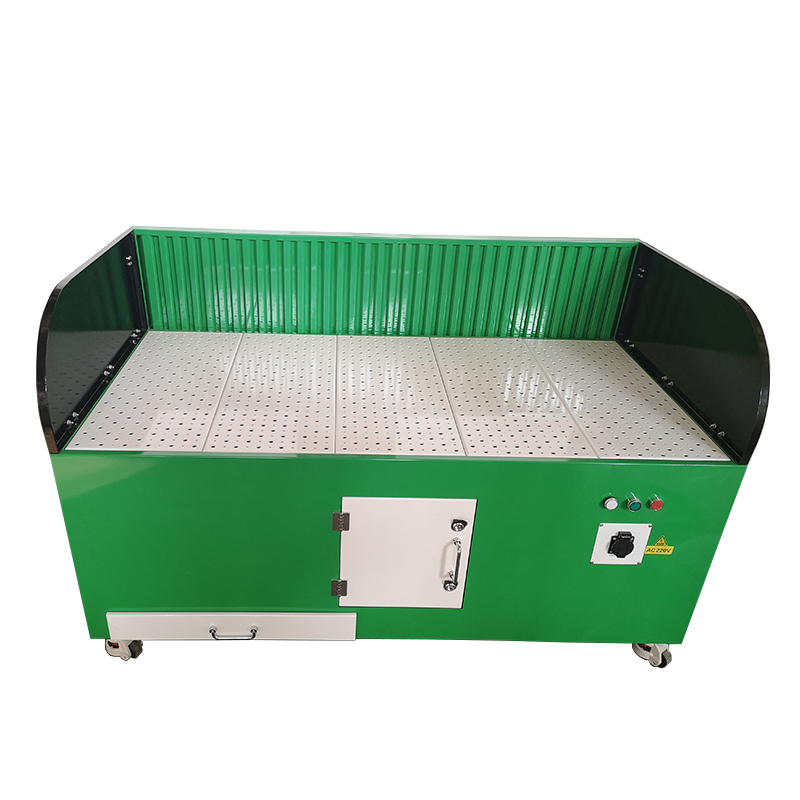

  • * Table Top


    1. The work surface can be replaced to meet the grinding needs of various workpieces.
    2. The work surface material can be carbon steel, stainless steel, brass, nylon, polyurethane, etc.
    3. Optional rotating table for more precise grinding angles.

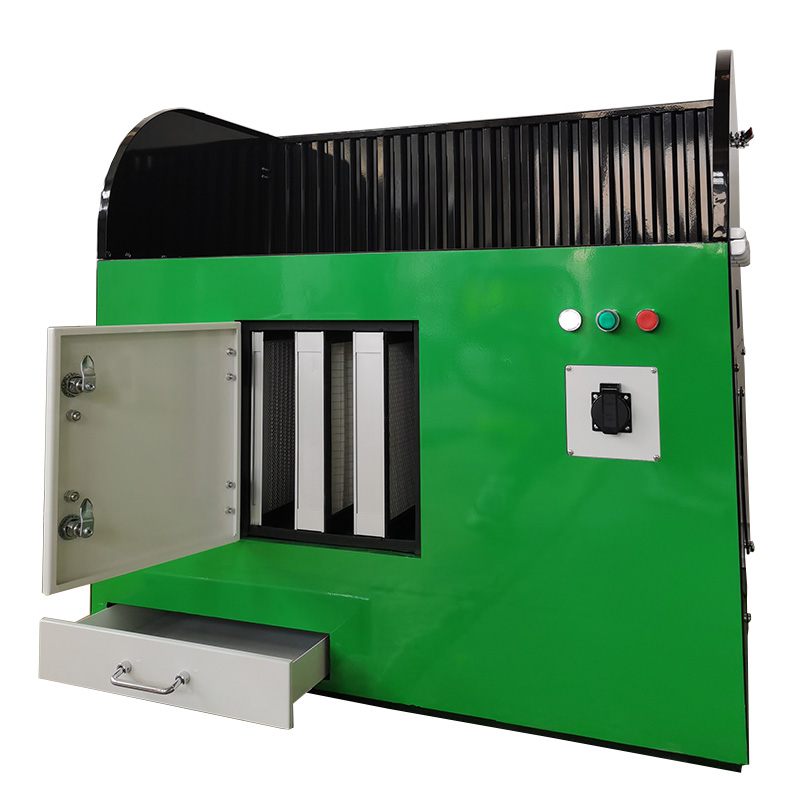

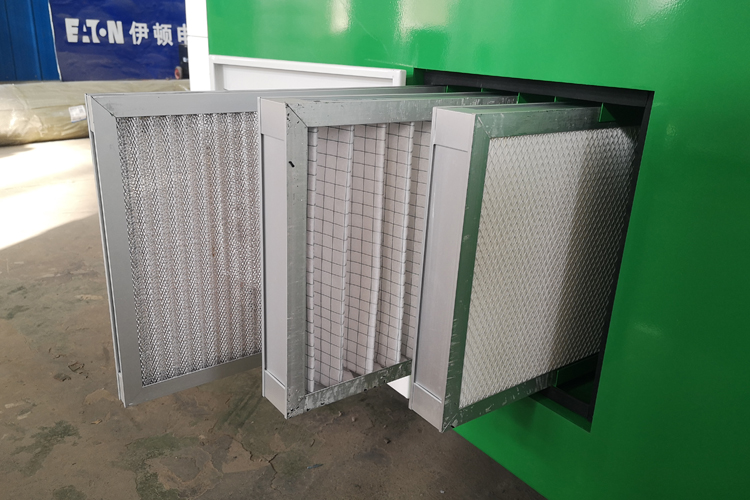

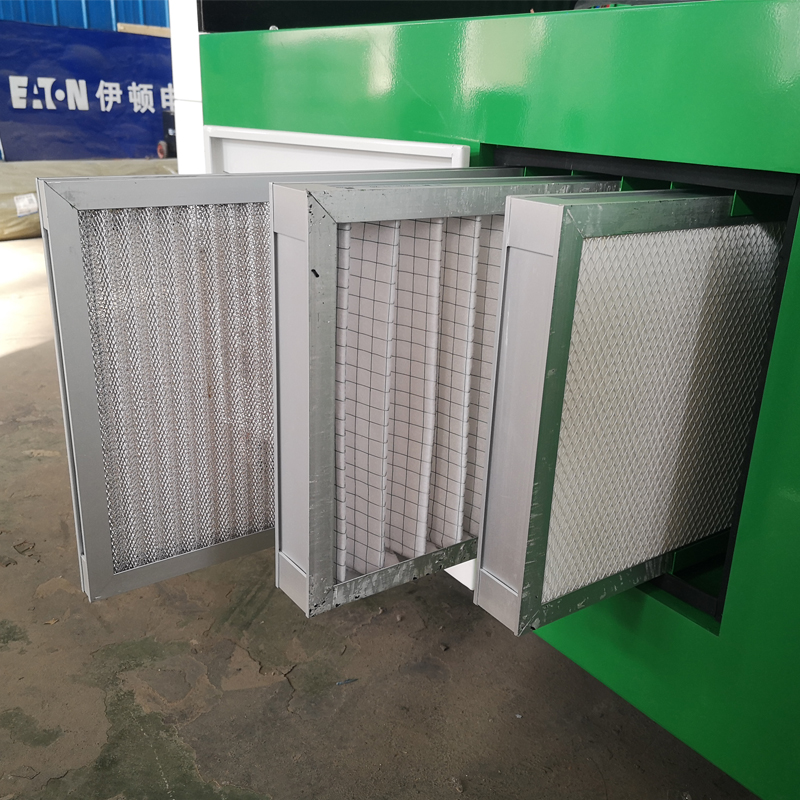

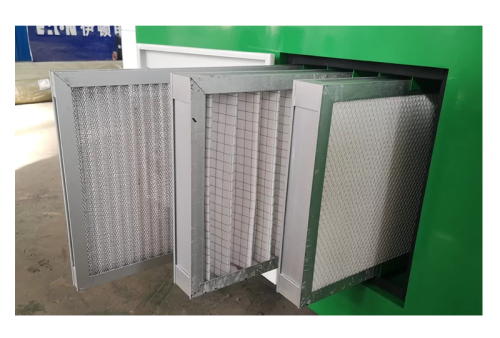

  • * Filter Plates


    1. Multi-stage filtration system, efficient purification.
    2. Metal mesh filter, primary filter, HEPA filter
    3. Filter accuracy: 0.3μm, 99.9%

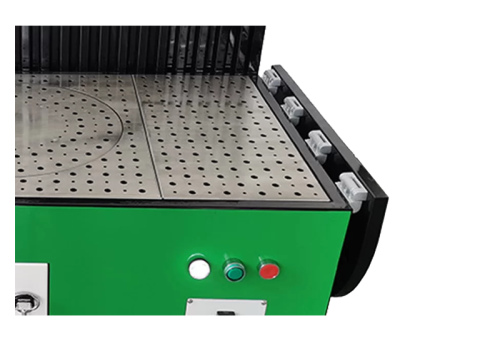

  • * Foldable Side Wings


    1. The standard pin-hinged, foldable side wings of the dust and fume extraction table help to efficiently direct airflow and also provide operational flexibility to work on parts that vary in size.

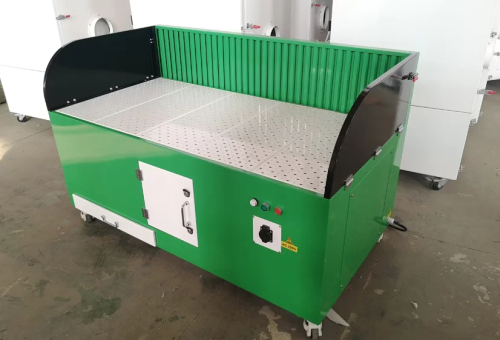

  • * Downdraft and Backdraft Design


    1. Designed with both downdraft and backdraft airflow – this combination increases the efficiency of the system to contain airborne dust or fumes while performing applications such as grinding, laser cleaning or welding.

  • * Dust Collection Box


    1. Drawer-type dust box makes dumping dust convenient and quick.

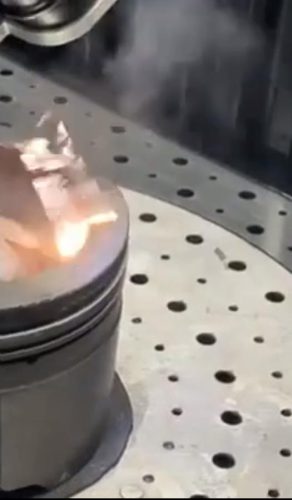

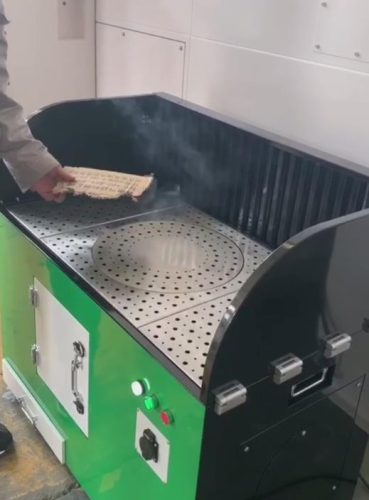

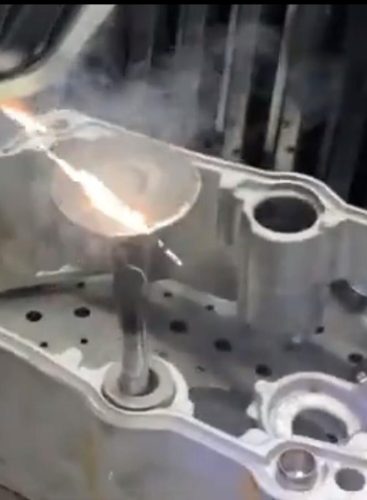

Applications

Downdraft Table

Downdraft Table

Downdraft Table

Metalworking

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
