MLWF1000DM-EX16T/2000DM-EX20T

Grinding Dust Collector

Telescopic Grinding Room is of one Moland's grinding and polishing dust extraction system. It contains a grinding cabinet with self cleaning system and a Telescopic Grinding Room or Stationary Grinding Room.

  • Motor Power:3KW*2/5.5kw×2
  • Air Volume:5000~10000/10000-20000m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Filter: Antistatic filters.
  • Explosion-proof devices.
  • Suitable for large workpiece grinding dust collection.
Get In Touch Brochure
  • Free combination on demand to meet various working conditions

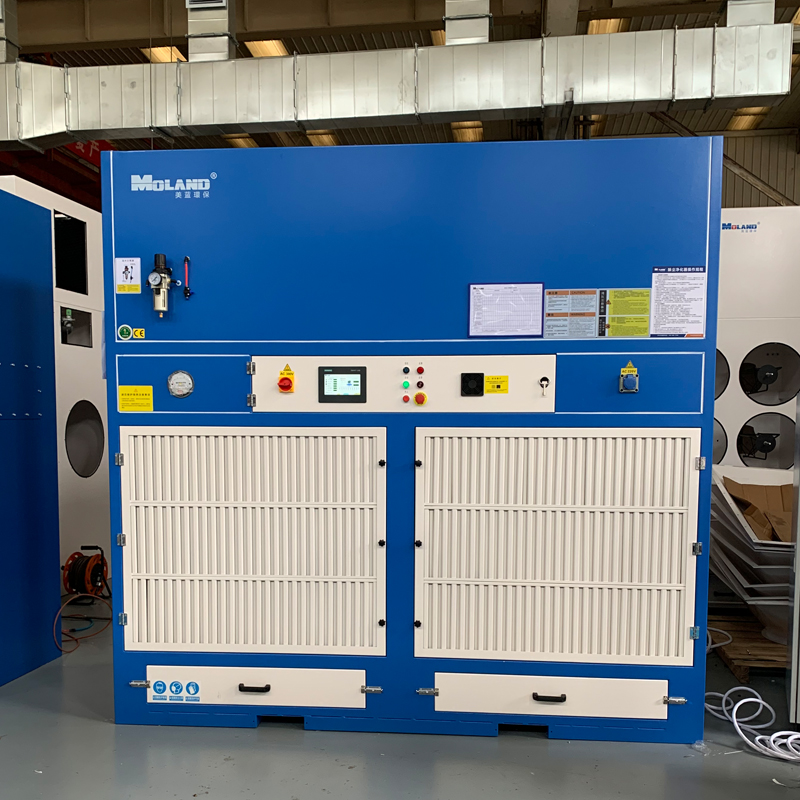

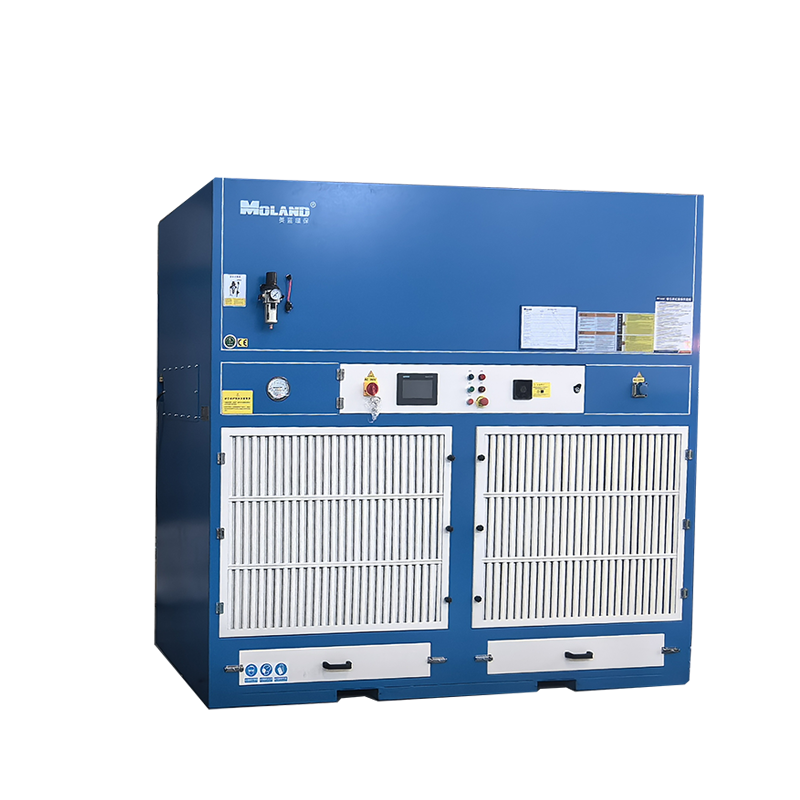

Grinding Cabinet with Fixed/Telescopic Room

The grinding and dust removal system consists of one or more grinding cabinets and a fixed or telescopic grinding room. The grinding cabinet adopts an internal circulation working mode of bottom extraction and top discharge. The dust-containing gas enters the grinding cabinet from the air inlet, first passes through the spoiler, and is evenly dispersed around the filter element. The dust is adsorbed on the surface of the filter element, and falls into the dust collection drawer at the bottom after pulse backblowing. The purified air is discharged through the air outlet above the grinding cabinet.

Tech Specs

Product model MLWF1000DM-EX16T MLWF2000DM-EX20T
Power 3kw×2 5.5kw×2
Working Voltage 380v/50Hz 3P 380v/50Hz 3P
Air volume 5000-10000m³/h 10000-20000m³/h
Filter accuracy 0.3μm 0.3μm
Filter material Imported flame-retardant PTFE coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter area 80m² 100m²
Noise 75±3dBA 75±3dBA
Dimensions 2100*1030*2285mm 2300*1250*2400mm
Weight 600Kg 750Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Heavy Workpiece Grinding Dust Collection System

The telescopic grinding room can be customized according to the size of the workpiece. The room ventilation volume can be adjusted by raising and lowering the rolling shutter door to form a semi-enclosed environmentally friendly dust removal room. When not in use, the room can be retracted and does not take up space. Grinding cabinets are installed in the room to collect and filter the grinding dust.

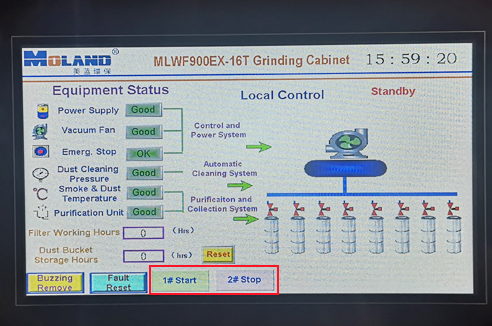

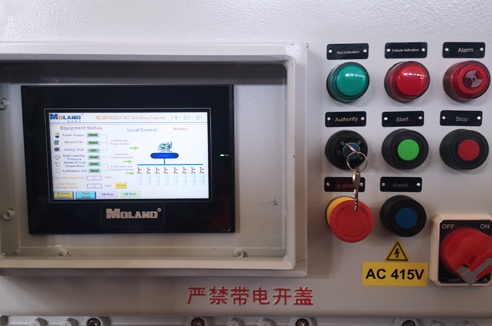

  • PLC Intelligent Control System


    1. Equipped with the intelligent control system independently developed by Moland, all function control and feedback information are displayed on the PLC screen.
    2. Important parameters are password-protected to prevent misoperation.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin, which is equipped with an anti-back-suction device.

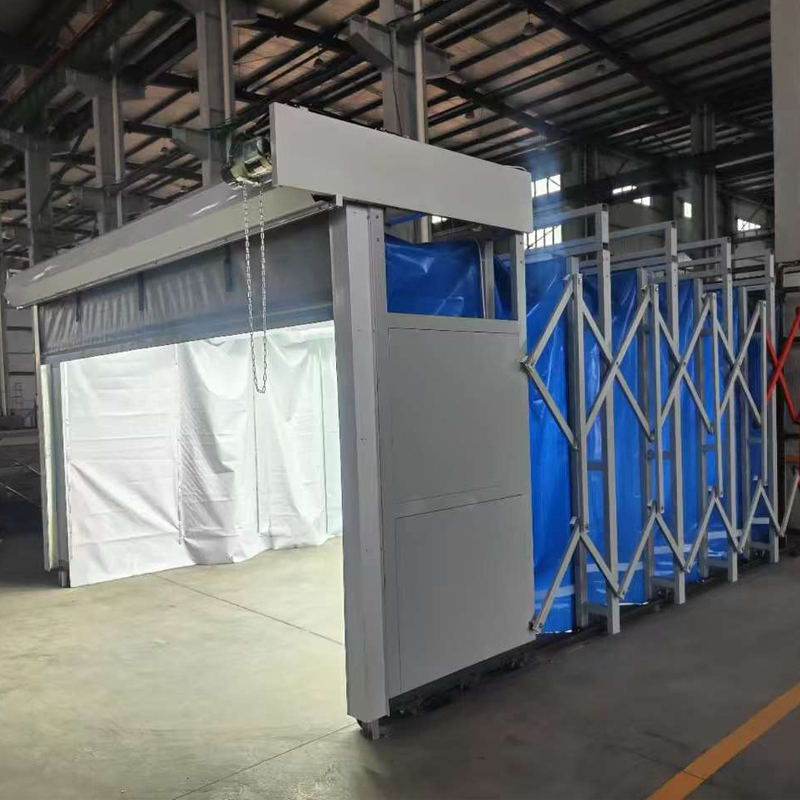

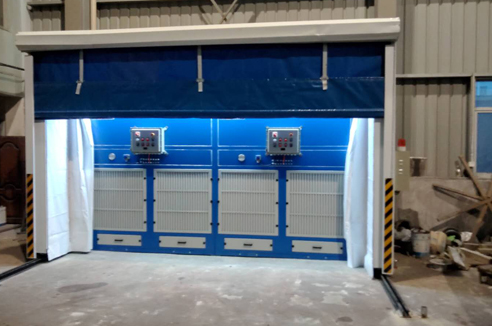

  • Telescopic Room


    1. The telescopic grinding room can be customized according to the size of the workpiece. The room ventilation volume can be adjusted by raising and lowering the rolling shutter door to form a semi-enclosed environmentally friendly dust removal room. When not in use, the room can be retracted and does not take up space.

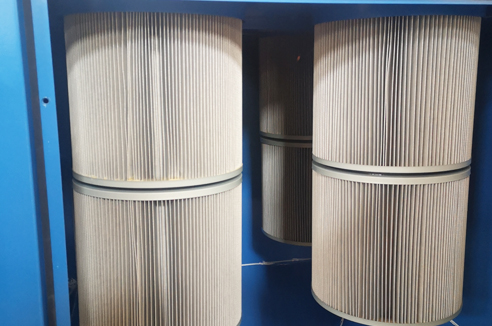

  • Anti-static Filter


    1. The anti-static filter, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.

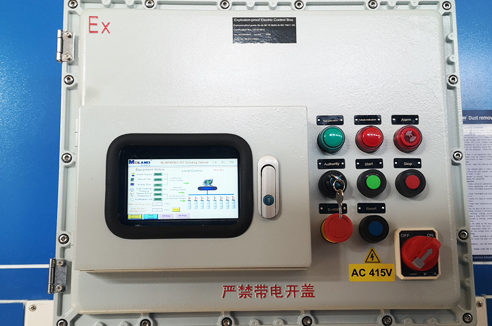

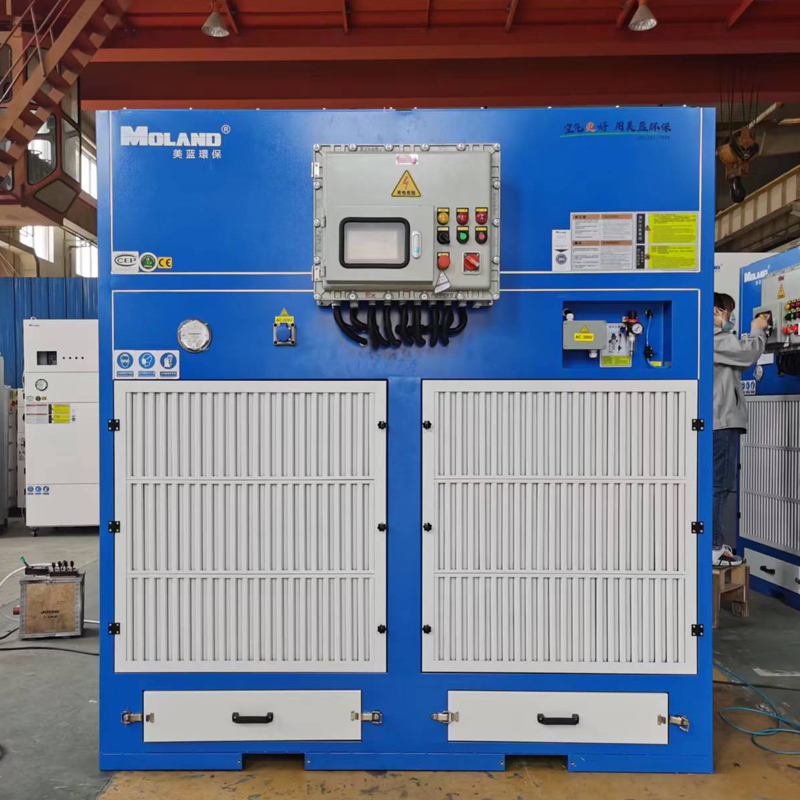

  • Explosion-proof Device.


    1. Explosion-proof fan, explosion-proof solenoid valves, anti-static filters, explosion-proof electric control box.

  • Dual Motors and Dual Controls


    1. Equipped with two motors, each of which can be controlled independently.
    2. Users can turn on one or two motors according to actual conditions to achieve energy saving and emission reduction.

Applications

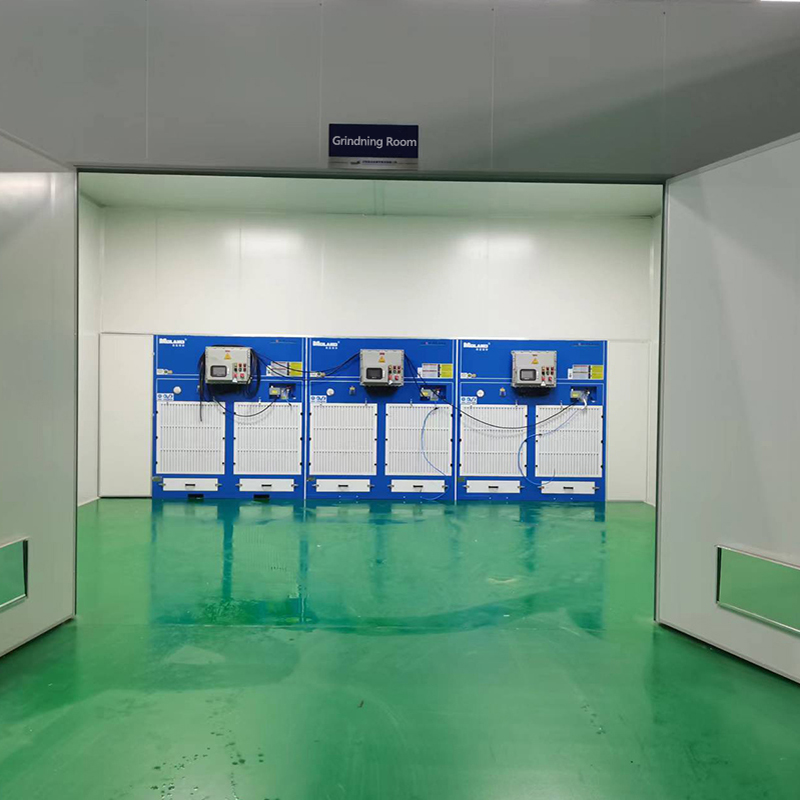

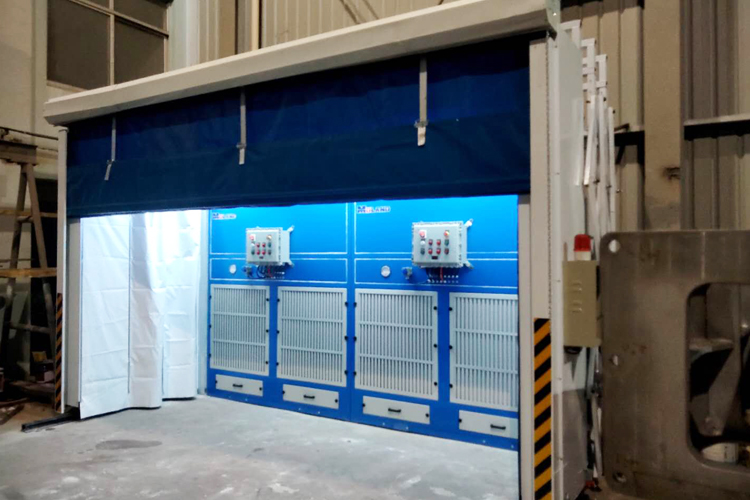

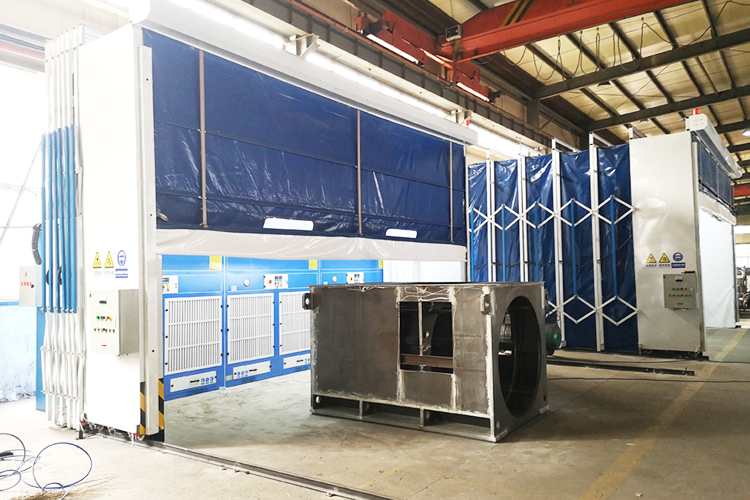

Grinding cabinet with telescopic room

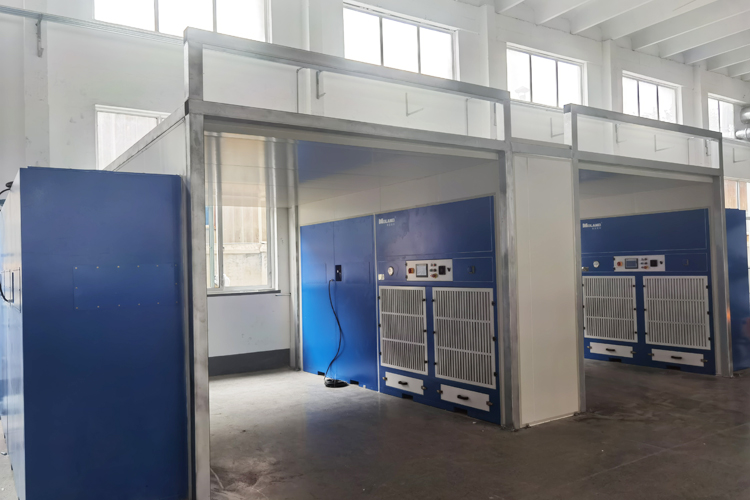

Grinding dust collection system with fixed room

Grinding dust collection system with fixed room

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
